Detailed Specifications
Basic Parameters
- Model: SHACMAN Delong 6×4 Dump Truck (F3000 / M3000 / X3000 series)
- Drive Type: 6×4 (10 wheels, 4 driven)
- Dimensions (L×W×H): 8500–10500 mm × 2500 mm × 3400–3900 mm
- Wheelbase: 3775 + 1400 mm / 3800 + 1350 mm
- Curb Weight: 12–15 tons
- Rated Payload: 12–16 tons
- Gross Vehicle Weight (GVW): 25–31 tons
- Emission Standard: Euro 4 / Euro 5 / Euro 6 (China National IV / V / VI)
Powertrain
- Engine: Weichai WP10 / WP12 series diesel engine
- Displacement: 9.726 L (WP10) / 11.596 L (WP12)
- Power: 336–460 HP (247–338 kW)
- Torque: 1500–2000 N·m @ 1000–1600 rpm
- Features: Turbocharged, intercooled, direct injection, exhaust valve brake, strong low-speed torque
- Transmission: FAST 10JSD140 / 12JSD160T manual gearbox
- Gears: 10 / 12 forward + 2 reverse
- Axles: Hande MAN technology axles
- Front axle: 6.5–7.5 tons
- Rear double axles: 11.5–16 tons (HD425)
- Final drive ratio: 4.11–5.92 (optional)
Cargo Box & Hydraulic System
- Cargo Box: Rear-tipping, high-strength steel
- Size: 5600–7200 mm × 2300 mm × 1000–1500 mm
- Thickness: Floor 6–8 mm, sides 4–6 mm
- Design: U-shaped / rectangular, wear-resistant, anti-corrosion
- Hydraulic System: Front-mounted telescopic cylinder
- Lifting angle: 45–50°
- Lifting time: ≤15 s
- Lowering time: ≤12 s
Cabin & Safety

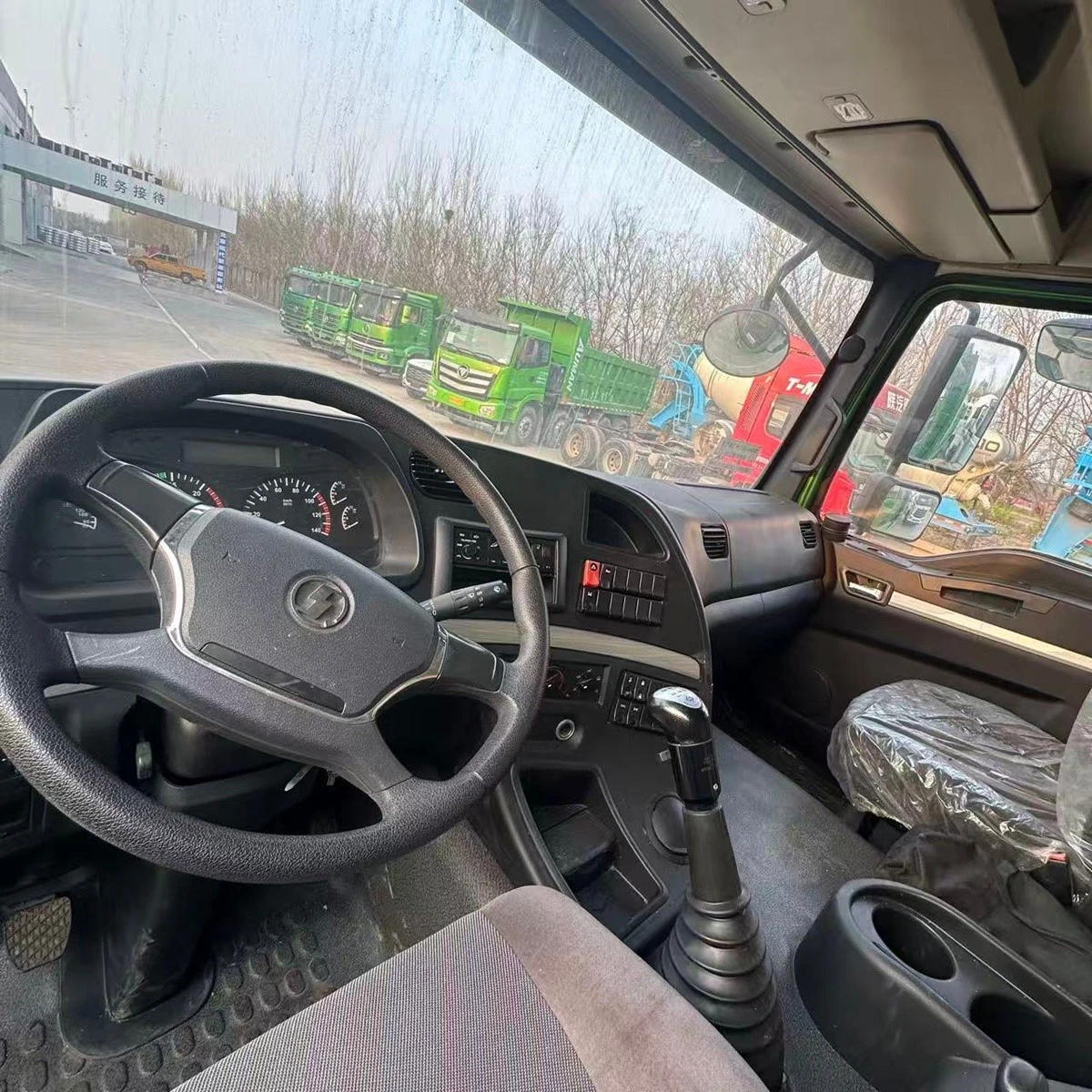

- Cabin: All-steel integral structure, 4-point suspension
- Airbag driver seat, flat floor, sleeper bed
- Multifunctional steering wheel, electric windows, air conditioning
- Safety: ECE-R29 collision certified, ABS, differential lock, strong windshield, rollover protection
Operation Guide
01/
Pre-operation Check
- Exterior: Check tires (pressure & wear), wheel nuts, cargo box, and hydraulic cylinder for leaks or damage.
- Engine area: Check engine oil, coolant, fuel level, brake fluid; inspect belts and hoses.
- Cab: Check lights, horn, instruments, parking brake, and airbag seat function.
02/
Starting & Driving
- Start: Insert key → ON (wait self-check) → START. Idle 3–5 minutes for warm-up.
- Drive: Release parking brake, depress clutch, shift to 1st gear, accelerate smoothly.
- Climbing/downhill: Use low gears for climbing; use exhaust brake and engine brake downhill.
- Speed: 60–80 km/h on good roads; ≤40 km/h on rough sites.
03/
Dumping Operation
- Position: Park on flat, solid ground. Engage parking brake, shift to neutral.
- PTO: Start engine, depress clutch, engage PTO (power take-off).
- Lift: Slowly release clutch, operate hydraulic lever to raise box to 45–50°. Keep people away.
- Lower: After unloading, lower box slowly. Disengage PTO, return lever to neutral.
04/
Safety & Maintenance
- Do not overload; distribute cargo evenly.
- Check overhead clearance (≥6 m) before lifting.
- Use differential lock in mud or slippery terrain.
- After work: Clean cargo box and chassis; check bolts, oil, and water.
