SHACMAN Delong M3000 Dump Truck – Introduction, Specifications & Operation Guide
Detailed Specifications
Basic Parameters
- Brand/Model: SHACMAN Delong M3000 (6×4 / 8×4 drive options)
- Dimensions (L×W×H): 8500–10500mm × 2500mm × 3400–3900mm
- Wheelbase: 3800+1350mm (6×4); 1800+3575+1350mm (8×4)
- Curb Weight: 12–15 tons; Rated Payload: 12–16 tons; Gross Vehicle Weight (GVW): 25–31 tons
- Emission Standard: Euro 4/5/6 (CN country IV / country V / country VI)
Powertrain

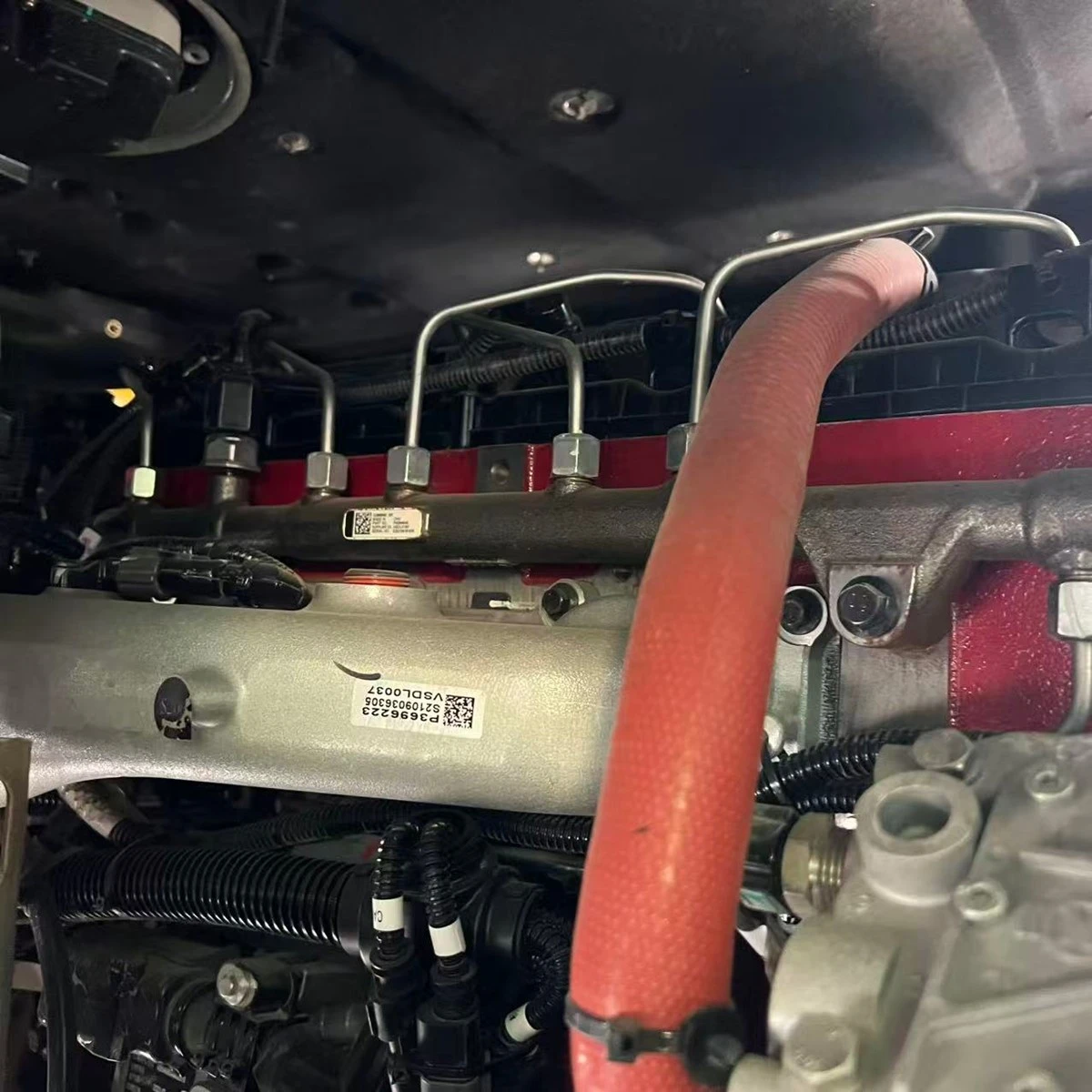

- Engine: Weichai WP10/WP12 Series Diesel Engine
- Displacement: 9.726L (WP10) / 11.596L (WP12)
- Power: 310–460 hp (228–338 kW)
- Torque: 1500–2010 N·m @ 1000–1600 rpm
- Features: Water-cooled, 4-stroke, turbocharged & intercooled, exhaust valve brake, direct injection
- Transmission: Fast 10JSD140 / 12JSD160T Manual Gearbox
- Gears: The Delong M3000 dump truck features 10 or 12 forward gears and 2 reverse gears, offering smooth shifting and high torque.
- Axles: Hande MAN Technology Axles
- Front Axle: 6.5–7.5 tons; Rear Axle: 11
Cargo Box & Hydraulic System
- Cargo Box: Rear-tipping, high-strength steel (3mm sides, 5mm floor)
- Capacity: 6.2–7.6m (length) × 2.3m (width) × 1.0–1.5m (height)
- Design: U-shaped/rectangular, corrosion-resistant, anti-cracking

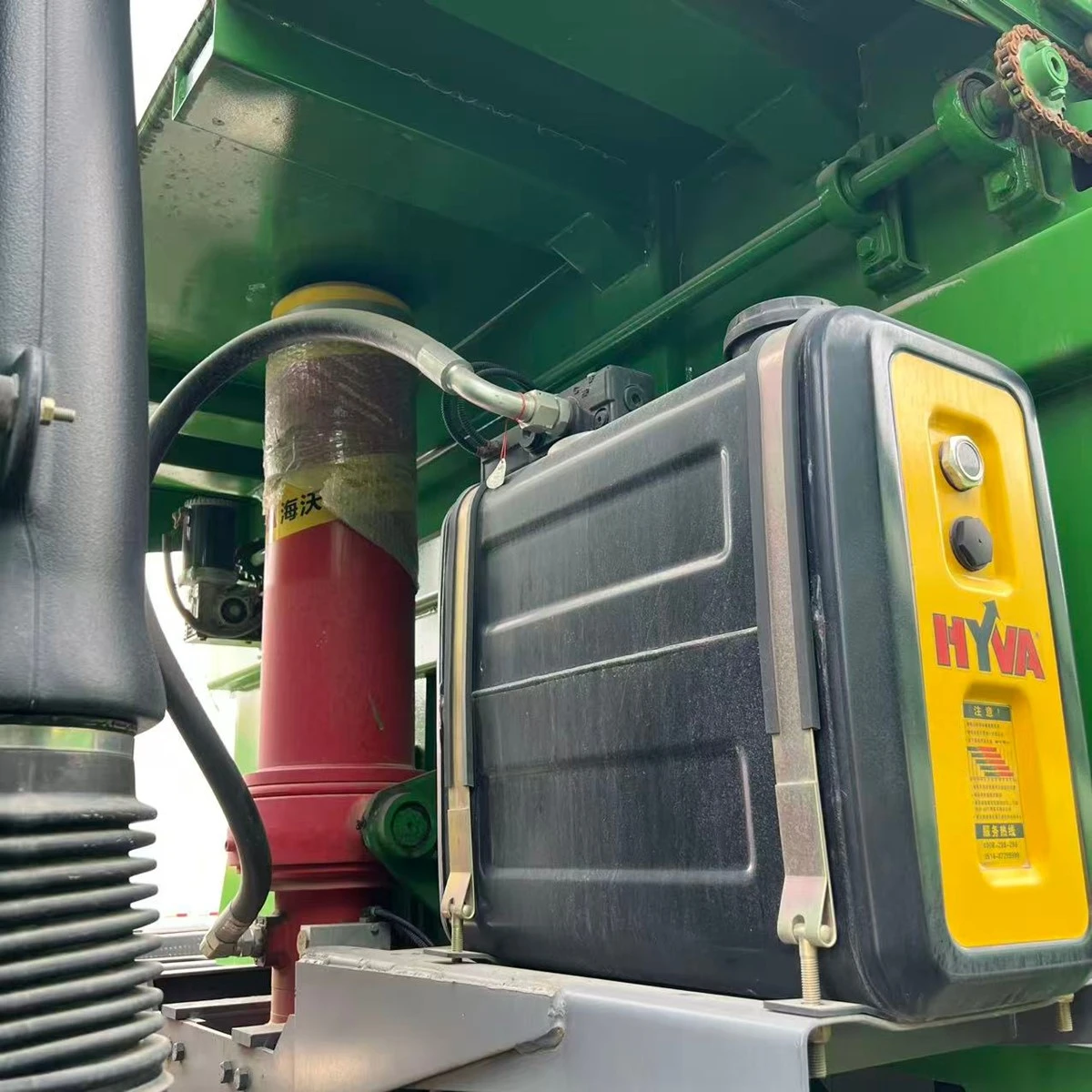

- Hydraulic System: High-pressure telescopic cylinder (front-mounted)
- Lifting Angle: 45–50°; Lifting Time: ≤15s; Lowering Time: ≤12s
Cabin & Safety

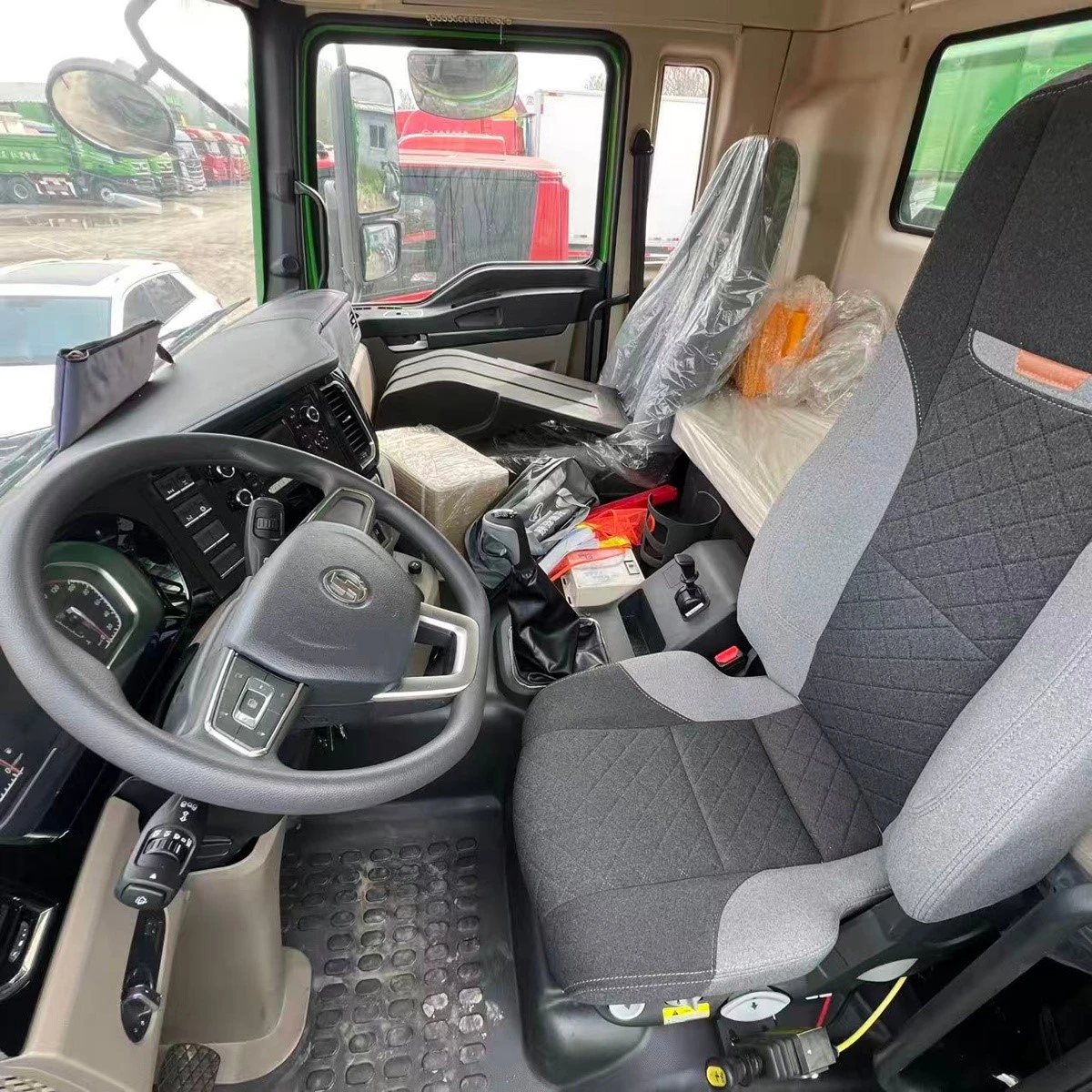

- Cabin: European MAN TGS design, all-steel integral structure
- Suspension: 4-point hydraulic suspension + airbag shock absorption
- Interior: Sedan-style, spacious, 750mm wide sleeper bed, adjustable airbag driver seat
- Storage: 8 new storage compartments, multifunctional steering wheel
- Safety: ECE-R29 collision certified, curved high-strength windshield, ABS, differential locks (inter-axle & inter-wheel)
Operation Guide
01/
Pre-Operation Inspection
- Exterior: Check tires (pressure/wear), wheel nuts, cargo box, and hydraulic cylinder for damage/leaks.
- Engine Compartment: Verify oil, coolant, fuel, and brake fluid levels; inspect belts and hoses.
- Cabin: Check instruments, lights, horns, and braking system; ensure airbag seat and suspension function normally.
02/
Starting & Driving
- Start: Insert key, turn to "ON" (wait for self-check), then "START" (crank engine). Idle for 3–5 minutes to warm up.
- Driving: Release parking brake, depress clutch, shift to 1st gear, and accelerate smoothly. Avoid harsh shifting; use exhaust brake for downhill sections.
- Speed Control: Maintain 60–80 km/h on highways; ≤40 km/h on rough roads to reduce wear.
03/
Dumping Operation
- Positioning: Park the Delong M3000 dump truck on flat, solid ground; engage the parking brake and place the gear shift lever in neutral.
- Preparation: Start engine, depress clutch, and engage PTO (power take-off).
- Lifting: Slowly release clutch, operate hydraulic lever to raise cargo box to 45–50°. Ensure no personnel nearby during dumping.
- Lowering: After unloading, lower the box slowly to avoid impact; disengage PTO and return lever to neutral.
04/
Post-Operation Maintenance
- Cleaning: Wash cargo box and chassis to remove debris; clean air filter regularly.
- Fluid Check: Refuel, replenish oil/coolant, and drain water from fuel filter.
- Inspection: Check for loose bolts, leaks, or damage; park in a dry, ventilated area.
05/
Safety Precautions
- Load Limit: Never exceed rated payload; distribute cargo evenly to avoid tilting.
- No Overhead Obstacles: Ensure clearance when lifting the cargo box (≥6m height).
- Emergency: Use differential locks for mud/snow; avoid sharp turns at high speed.
