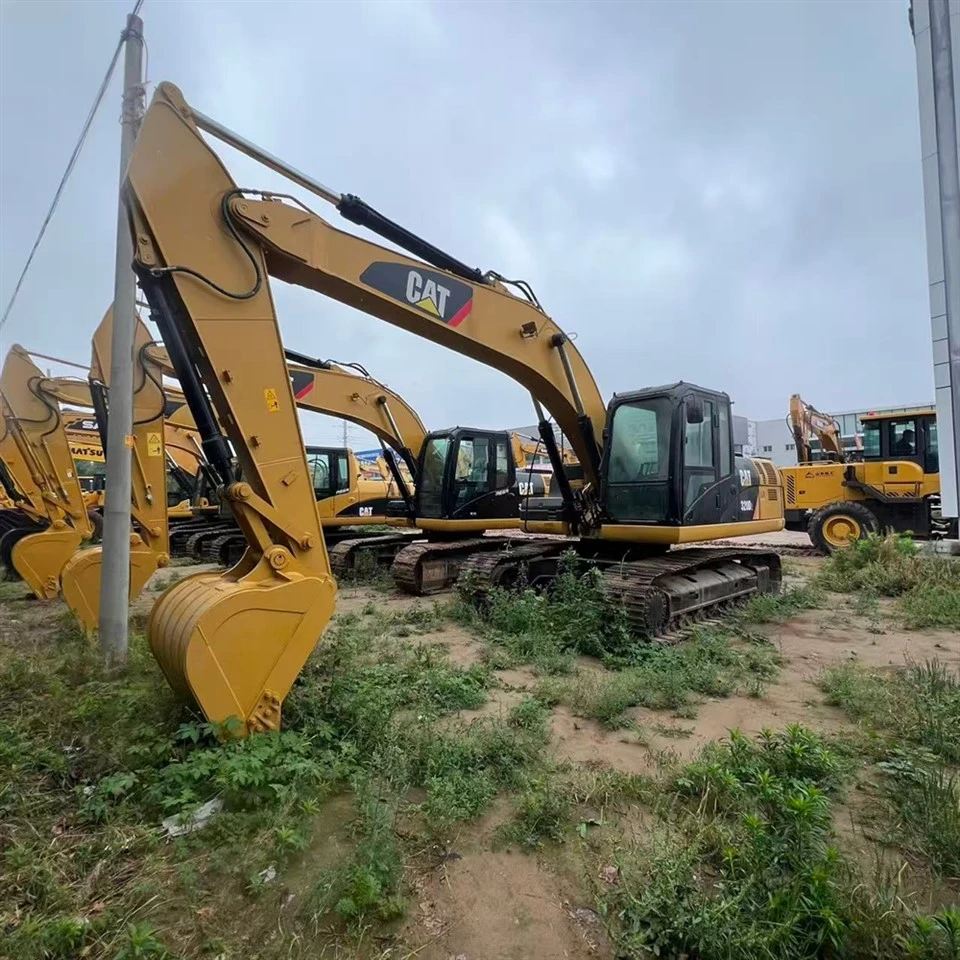

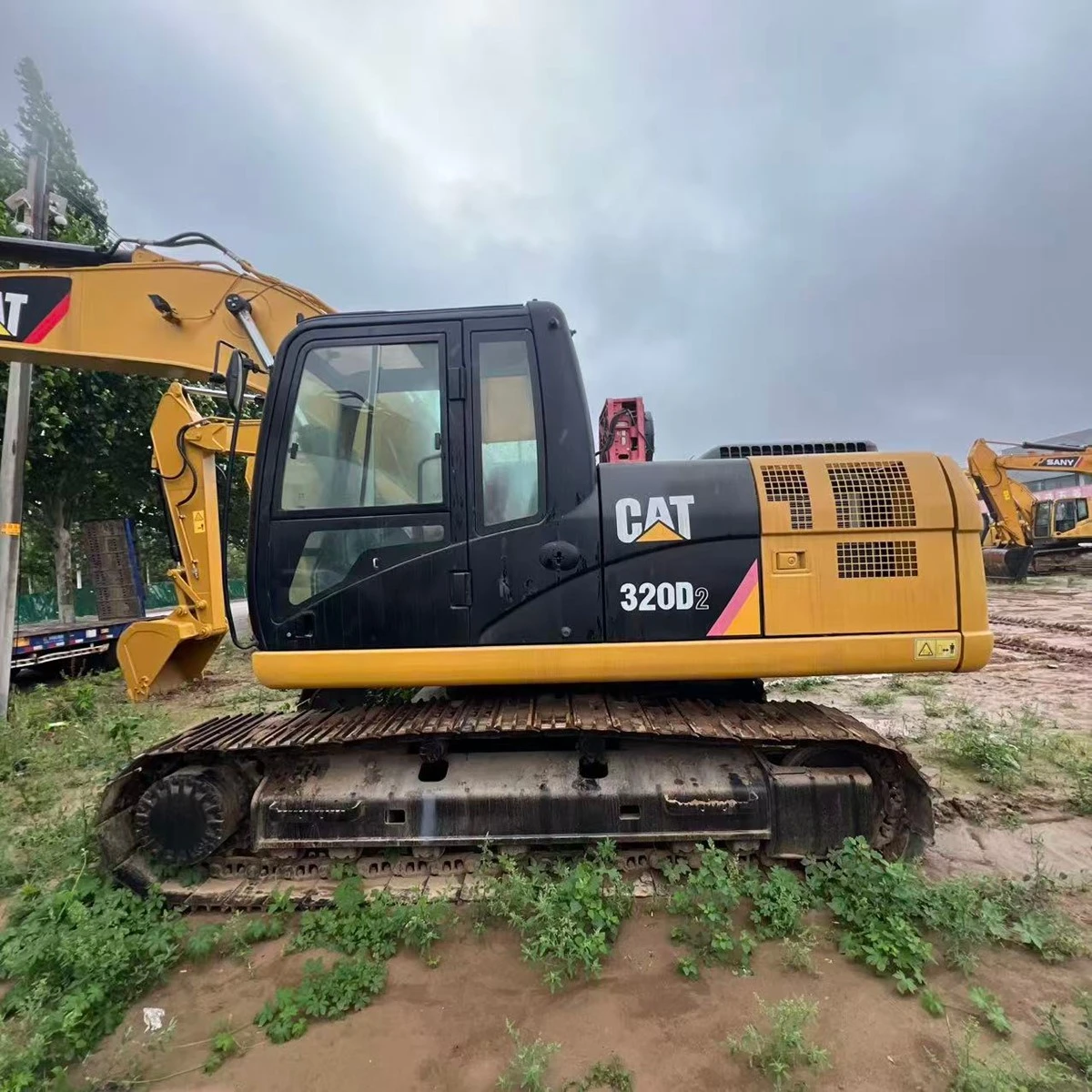

Small Caterpillar Excavator

Caterpillar Excavator - Introduction, Full Configuration, Detailed Specifications & Operation Guide

Standard Core Configuration

Power System: Original CAT C1.8 four-cylinder water-cooled diesel engine, matched with intelligent energy-saving control system, meeting global Stage V / Euro 5 emission standards

Hydraulic System: Caterpillar proprietary load-sensing hydraulic system, independent multi-way valve control, stepless speed regulation, smooth and precise operation

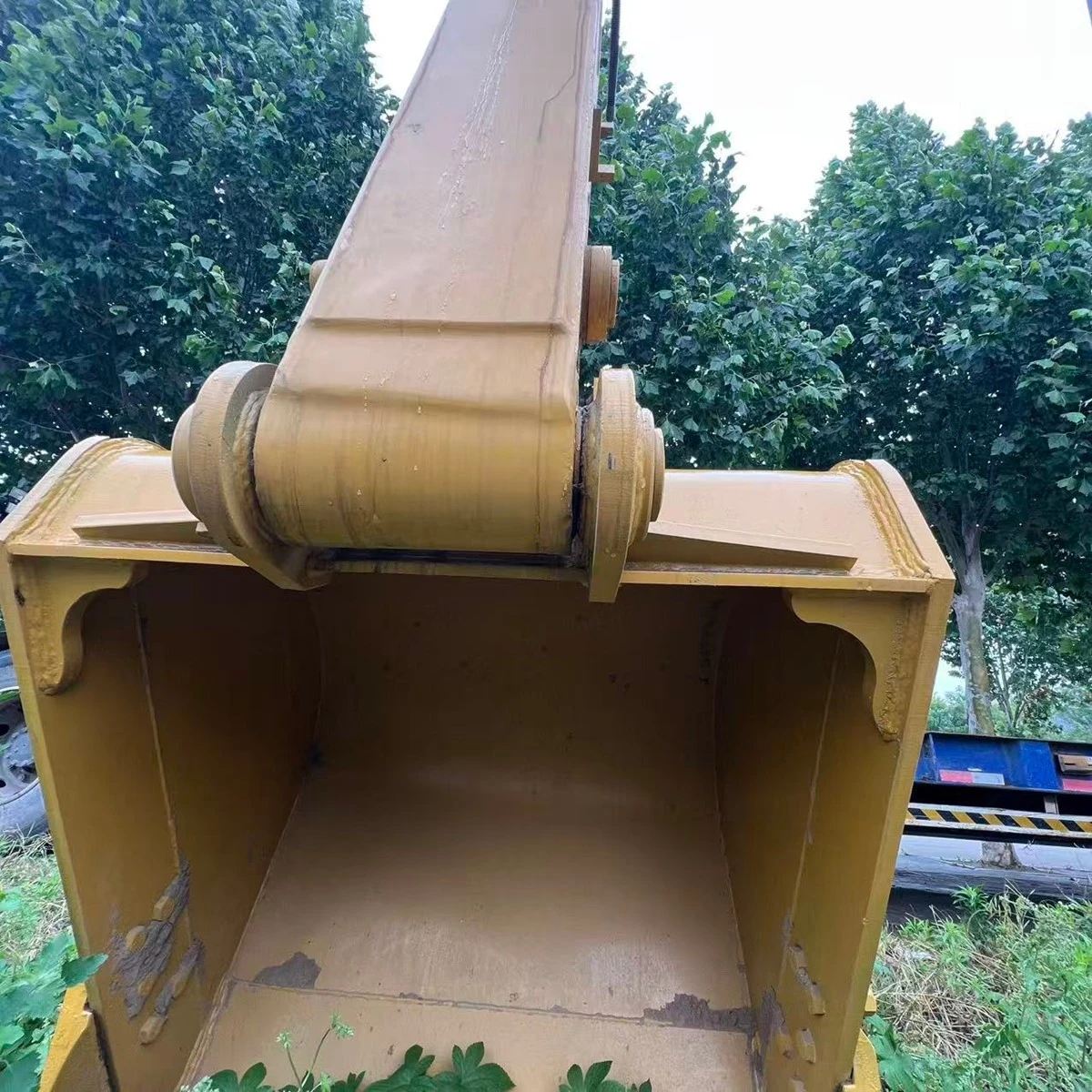

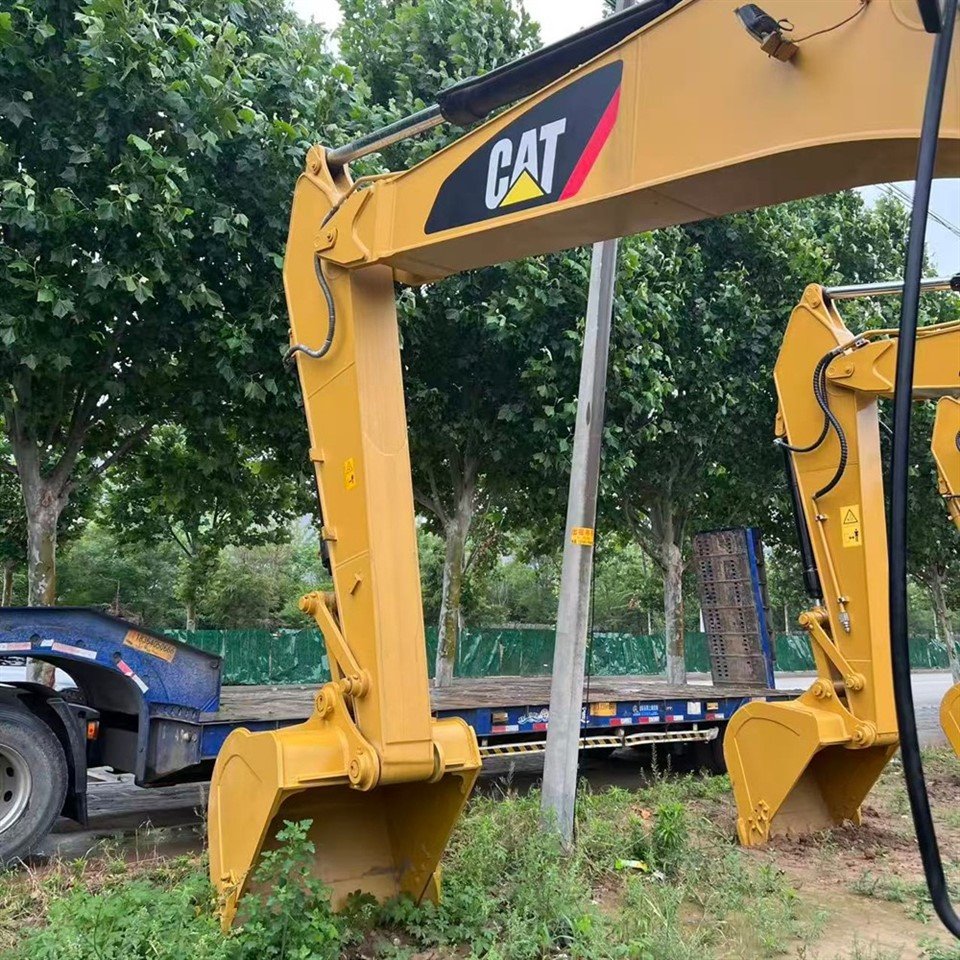

Working Device: Standard heavy-duty boom, standard stick and high-strength digging bucket; reinforced thickened arm body and wear-resistant bucket teeth, anti-deformation and anti-wear

Chassis Configuration: Flexible rubber track system, adjustable track width, hydraulic telescopic undercarriage; front hydraulic bulldozer blade for leveling and stabilizing operation

Rotation Structure: Compact zero tail swing design, 360° free rotation without overhang, suitable for narrow space construction



Operation Cabin: Standard open canopy / optional fully enclosed cab, ergonomic dual joystick operation, shock-absorbing seat and intelligent instrument panel



Safety & Functional Configuration: Engine anti-theft system, emergency stop device, overload protection system, whole machine anti-collision protection and high-brightness working lights



Energy-Saving Configuration: Automatic idle speed function, intelligent power matching system, effectively reducing idle fuel consumption and improving operation economy

Optional Upgraded Configuration

Cab Upgrade: Fully enclosed luxury cab with air conditioning, sound insulation and dustproof design for all-weather operation



Working Tool Upgrade: Optional hydraulic breaker, quick hitch, grabber, auger and other multi-functional attachments to realize multi-scene operation



Track Upgrade: Optional steel tracks for harsh rocky and muddy working conditions



Intelligent Upgrade: Optional remote vehicle condition monitoring, fault self-diagnosis system and GPS positioning management system

• Engine Performance: CAT C1.8 water-cooled diesel engine
• Net Power: 23.6HP (17.6kW), stable power output, sufficient power reserve for daily fine construction
• Energy-Saving Advantage: Intelligent automatic idle speed control, low fuel consumption, low noise and low emission
• High Reliability: Original Caterpillar power unit, strong dust resistance and temperature adaptability, suitable for long-hour continuous operation
• Hydraulic System: Load-sensing full hydraulic control system
• Working Performance: Precise flow distribution, synchronous compound action of boom, stick, bucket and rotation without jitter
• Digging Force: Maximum bucket digging force 28.4kN, strong penetration for soil, gravel and loose rock layers
• System Advantage: Low hydraulic loss, high transmission efficiency, effectively improving working efficiency and reducing failure rate

• Compact Zero Tail Design: The tail does not exceed the track width during full rotation, completely solving the collision problem in narrow spaces such as urban streets, building intervals and indoor sites.
• Telescopic Chassis: Hydraulic adjustable track width, flexible switching between narrow and wide states, improving trafficability and working stability on complex terrain.
• Bulldozer Blade: Equipped with front integrated hydraulic bulldozer blade, which can level the site, stabilize the vehicle body during operation and backfill trenches efficiently.
• Durable Structure: The boom and stick adopt high-strength integral steel structure, with optimized stress design, strong torsion resistance and fatigue resistance, adapting to high-frequency repeated operation.

• Humanized Operation: Standard dual proportional joystick operation, consistent with international mainstream operating habits, flexible and labor-saving; intelligent instrument panel displays speed, oil quantity, water temperature and fault code in real time.
• All-Weather Working Performance: High-brightness LED working lights, adapting to night and low-light environment construction; optional fully enclosed cab realizes dustproof, rainproof and heat insulation operation.
• Multi-Safety Protection: Equipped with hydraulic overload protection, engine overheating protection, emergency stop switch and anti-slip walking platform, effectively avoiding operational risks and mechanical damage.

Pre-Operation Inspection
Perform a comprehensive pre-start inspection of the Caterpillar excavator before commencing work to ensure stable mechanical performance and operational safety:

1. Power & Liquid Inspection: Check engine oil, coolant and diesel levels to ensure they are within the standard range; inspect oil pipelines and hydraulic pipelines for leakage, aging and blockage.
2. Chassis & Track Inspection: Check rubber track tension and wear status; inspect chassis rollers, idlers and driving wheels for jamming and abnormal wear; clean track sundries.
3. Working Device Inspection: Check boom, stick and bucket for deformation and crack; confirm bucket teeth and connecting pins are firm; test the flexible operation of each hydraulic action.
4. Safety & Electrical Inspection: Test emergency stop function, working lights and instrument display; check bulldozer blade telescopic and lifting functions for normal operation.

Standard Starting & Warm-Up Operation

1. Park the excavator on flat and solid ground, lower the bucket and bulldozer blade to touch the ground, and release the operating lever to the neutral position before starting.
2. Start the engine and keep idle warm-up for 3–5 minutes in low temperature environment; observe the instrument data to ensure no fault alarm and stable engine operation.
3. Test single actions such as boom lifting, stick expansion and contraction, bucket rotation and body rotation after warm-up to confirm smooth hydraulic operation without abnormal noise.

Construction Operation Specifications

1. Excavation Operation: Keep the vehicle body stable, use the bulldozer blade to assist in fixing the body during slope and deep excavation; adopt layered excavation to avoid overloading the bucket and violent digging, preventing arm body deformation and hydraulic system damage.
2. Narrow Space Operation: Make full use of zero-tail swing performance, control rotation speed slowly, avoid collision with surrounding buildings and obstacles; adjust track width according to site space to ensure flexible passing.
3. Leveling & Backfilling: Cooperate with the bulldozer blade and bucket for fine leveling and trench backfilling, maintain uniform operation speed to ensure flat construction effect.
4. Multi-Attachment Operation: Replace breakers, grabbers and other accessories strictly in accordance with specifications; adjust hydraulic flow parameters to match different working tools and avoid overload operation.

Travel & Transfer Precautions

1. Retract the working arm and lower the bucket close to the ground during walking, keep the body center of gravity stable, and avoid high-speed walking and sharp turning.
2. Slow down when passing slopes, uneven roads and soft ground; avoid long-distance rapid driving to reduce track wear and chassis loss.
3. Fix the machine firmly with professional tools during long-distance transportation and transfer to avoid sliding and collision damage.

 Shutdown & Daily Maintenance

1. Standard Shutdown: Park the machine on flat ground, lower all working devices to the ground, turn off the engine after 1–2 minutes of idle cooling, and cut off the power supply.
2. Daily Maintenance: Clean soil and sundries on tracks and chassis after operation; check pipeline tightness and liquid level status; lubricate connecting pins and rotating parts regularly.
3. Regular Maintenance: Replace engine oil, filter elements and hydraulic oil regularly according to the official cycle; inspect hydraulic system pressure and track wear; repair and replace worn bucket teeth and vulnerable parts in time.
4. Long-Term Storage: Clean the whole machine thoroughly, perform anti-rust treatment on metal parts, park in a dry and ventilated environment, and start the machine regularly for idle operation to avoid component aging.
