Standard Configuration
High-Efficiency Power System
The machine is powered by an original Cummins QSB7 turbocharged diesel engine, delivering 169 kW at 2050 rpm. The engine adopts high-pressure common rail fuel injection technology and intelligent fuel-saving control, ensuring strong torque output while reducing fuel consumption.
The engine is equipped with:
- Three-stage high-efficiency air filtration system
- Fuel pre-heating device
- Heavy-duty cooling system
- High-temperature and dust-resistant design
These features ensure stable operation in extreme environments such as deserts, mining sites, and tropical regions.

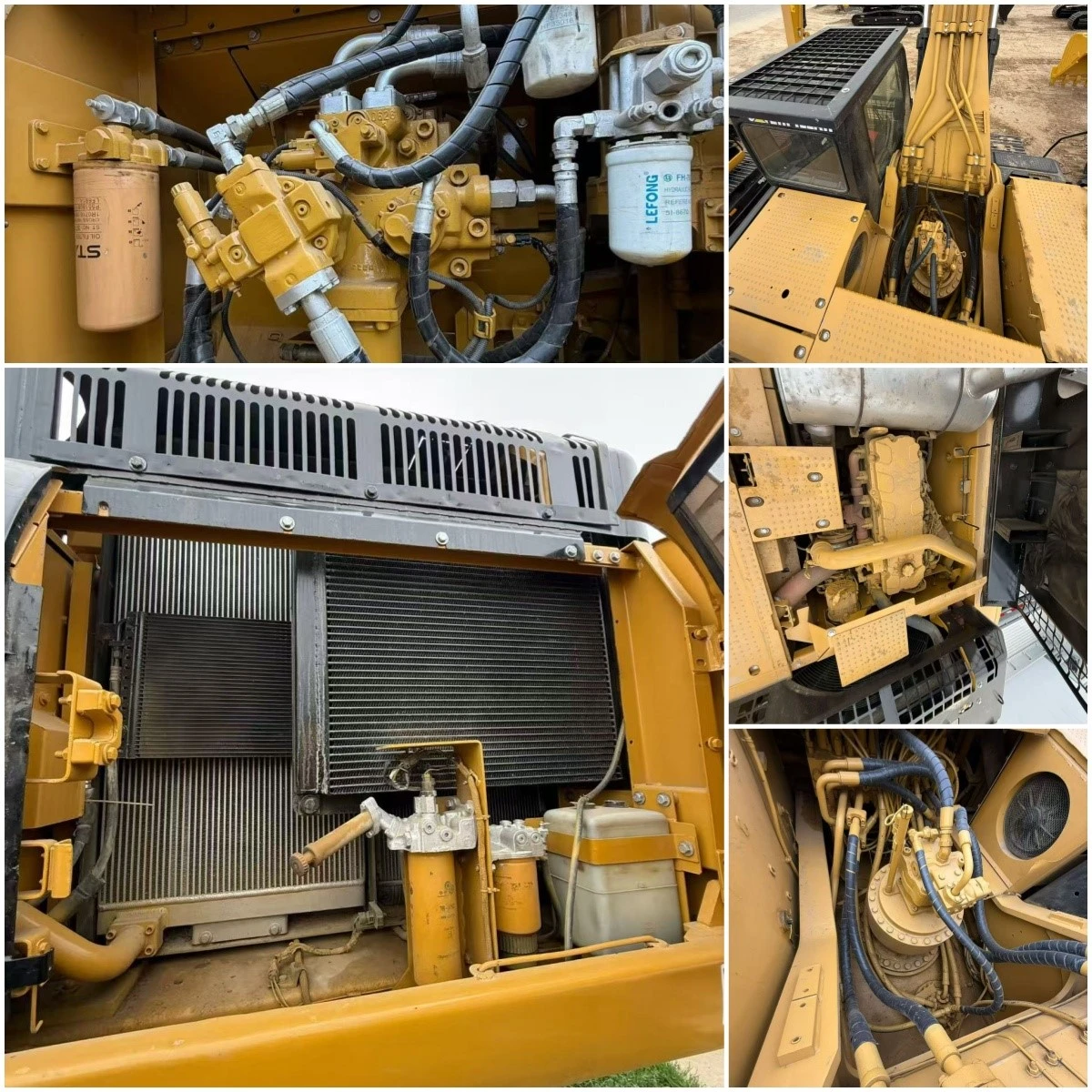

Advanced Hydraulic System
The XE305D uses a complete Kawasaki hydraulic system, including the main pump and control valve. Its load-sensing technology accurately matches hydraulic flow with working demands, providing:
- Fast hydraulic response
- Smooth compound movements
- Stable pressure output
- Reduced fuel consumption
The hydraulic system reaches a maximum working pressure of 32 MPa, while the bucket digging force reaches 198 kN, enabling efficient excavation of hard soil and weathered rock.
Reinforced Working Equipment
The excavator is equipped with:
- 6.2 m heavy-duty boom
- 2.8 m reinforced arm
- 1.4 m³ wear-resistant rock bucket
All structural components are optimized through CAE simulation and manufactured from high-strength steel. Key stress points are reinforced to improve resistance to fatigue, twisting, and impact during continuous heavy-duty operations.

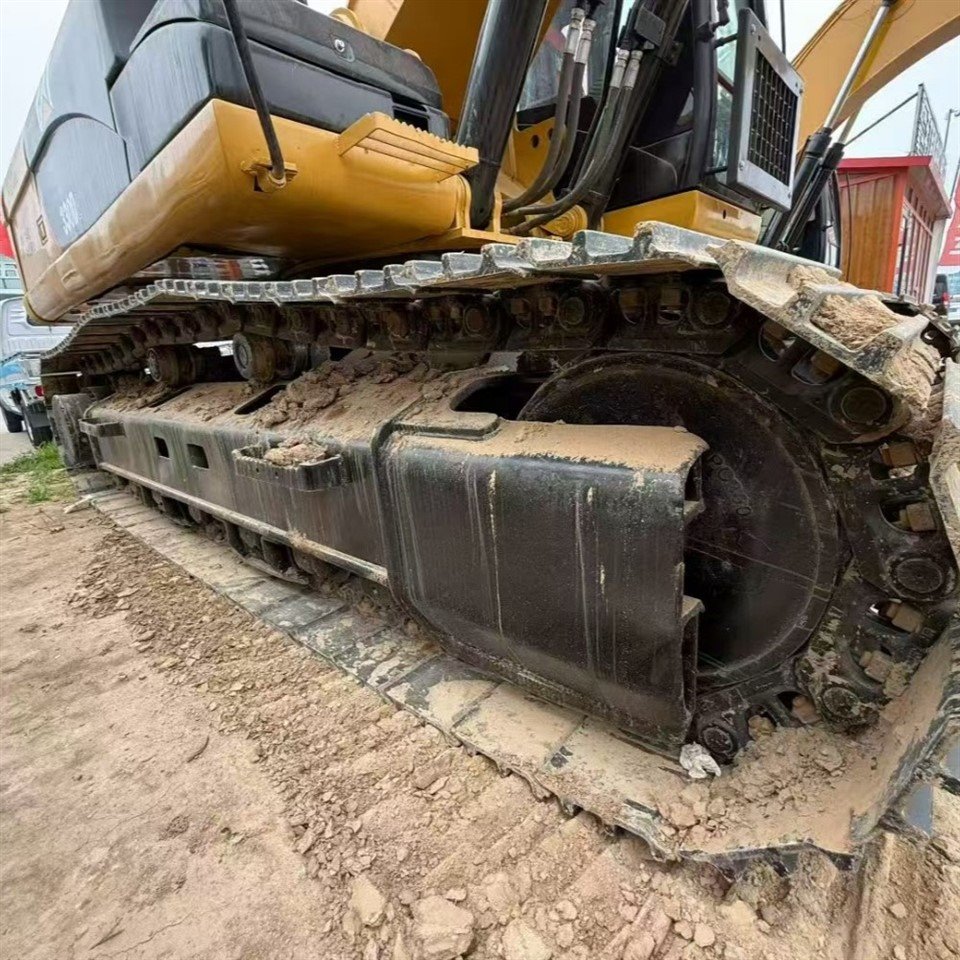

Heavy-Duty Undercarriage
The reinforced X-frame undercarriage offers outstanding structural strength and stability. It includes:
- High-strength widened track shoes
- Reinforced rollers and carrier rollers
- Durable drive sprockets
- Dual-speed travel system up to 5.5 km/h
The robust undercarriage provides excellent traction and stability on slopes, muddy terrain, and rocky mining areas.
Comfortable and Safe Cab
The upgraded operator cabin is designed for comfort and safety with:
- ROPS and FOPS certified protection
- Dustproof and noise-insulated structure
- Automatic air conditioning and heating
- Suspension shock-absorbing seat
- Bluetooth entertainment system
- Ergonomic pilot control joysticks
Three operating modes-Heavy Duty, Standard, and Eco-allow operators to adjust performance according to different working conditions.
Easy Maintenance Design
Maintenance is simplified through:
- Wide-opening engine hood
- Centralized lubrication points
- Easily accessible filters and hydraulic components
- 280-liter fuel tank supporting over 24 hours of continuous operation
This design minimizes downtime and improves service efficiency.
Optional Upgrades & Configurations
Power System Upgrades
Cold-start preheating package
High-altitude engine tuning
Engine dust protection cover
Exhaust purification system
01
Attachment Options
155-class hydraulic breaker
Hydraulic grapple
Rock ripper
Vibratory compactor
Reinforced rock bucket
Wide dozer blade
02
Comfort and Technology
360° rear-view camera system
Intelligent touchscreen display
Heated and ventilated seat
GPS positioning system
Anti-theft security lock
03
Safety Protection
LED working lights
Undercarriage skid plates
Cab protection guards
Reverse alarm system
Emergency braking device
04
Customized Modifications
Extended boom and arm
Mining-specific track shoes
Full-body wear-resistant protection
Hydraulic oil forced cooling system
05
Core Technical Specifications
|
Model |
XCMG XE305D |
|
Operating Weight |
30,800 kg |
|
Bucket Capacity |
1.27–1.6 m³ (Standard 1.4 m³) |
|
Engine |
Cummins QSB7 |
|
Rated Power |
169 kW / 2050 rpm |
|
Max Digging Depth |
7,200 mm |
|
Max Digging Radius |
10,760 mm |
|
Max Digging Height |
10,146 mm |
|
Max Dumping Height |
7,180 mm |
|
Bucket Digging Force |
198 kN |
|
Hydraulic Pressure |
32 MPa |
|
Travel Speed |
0–5.5 km/h |
|
Fuel Tank Capacity |
280 L |
|
Emission Standard |
EU Stage V / EPA Tier 4 Final |
Core Product Advantages
1. Ideal Balance of Performance and Investment
As a professional 30-Ton Excavator, the XE305D offers higher productivity than smaller excavators while maintaining lower acquisition and operating costs than larger machines. It is an excellent choice for contractors seeking both performance and return on investment.
2. Reliable Imported Components
The combination of Cummins power and Kawasaki hydraulics ensures outstanding durability, efficient fuel consumption, and smooth operation under demanding workloads.
3. Mining-Grade Durability
The reinforced frame, strengthened boom and arm, and heavy-duty undercarriage provide excellent resistance to wear and impact, making the machine ideal for continuous mining and quarry operations.
4. Wide Application Range
This Excavator supports multiple attachments and can perform excavation, rock breaking, material handling, demolition, river dredging, and site leveling, maximizing machine utilization and profitability.
5. High Resale Value
The XE305D complies with international emission standards and uses globally available spare parts. Its strong reputation, low maintenance cost, and excellent residual value make it a preferred choice for long-term investment.
Operation and Maintenance Guidelines
Pre-Operation Inspection
Before daily operation:
Check engine oil, coolant, and hydraulic oil levels
Inspect track tension and undercarriage condition
Examine boom, arm, bucket, and welds
Test pilot controls and safety devices
Warm up the engine for 3–5 minutes
Operating Recommendations
Clear the work area before operation.
Excavate in layers when working with rock.
Avoid using the bucket as a pry tool.
Keep the breaker vertical during breaking operations.
Travel straight up and down slopes whenever possible.
Reduce swing speed in crowded working areas.
Regular Maintenance
Every 100 hours:
Clean air filters
Check hydraulic hoses and track tension
Every 250 hours:
Replace engine oil and oil filter
Every 500 hours:
Replace fuel and hydraulic filters
Lubricate pins and swing bearing
Every 1,000 hours:
Inspect hydraulic pumps, sprockets, and track rollers
After-sales Service
We provide comprehensive after-sales support to ensure maximum uptime and customer satisfaction.
Our services include:
- Professional pre-delivery inspection
- Technical guidance and operator training
- Spare parts supply with fast global shipping
- Online technical assistance and troubleshooting
- Video support for maintenance and repairs
- Long-term parts availability and service consultation
Our experienced service team responds quickly to customer inquiries and provides practical solutions to minimize equipment downtime.
Customer Reviews
Customer from Indonesia
The XE305D performs extremely well in our quarry project. The engine is powerful, fuel consumption is lower than expected, and the hydraulic response is very smooth.
Customer from South Africa
We have been operating this machine continuously in mining applications. The structure is very strong, maintenance is simple, and spare parts are easy to obtain.
Customer from Chile
This 30-Ton Excavator has become one of the most productive machines in our fleet. It delivers excellent performance and provides a very good return on investment.
