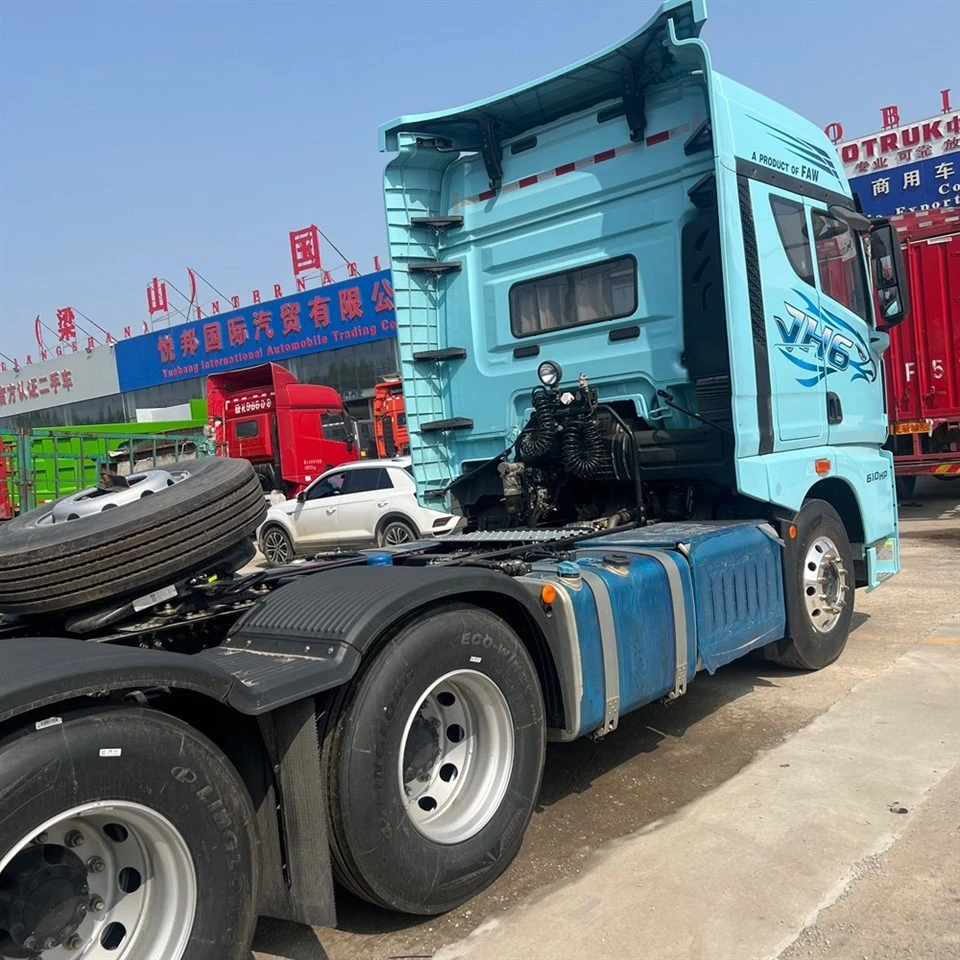

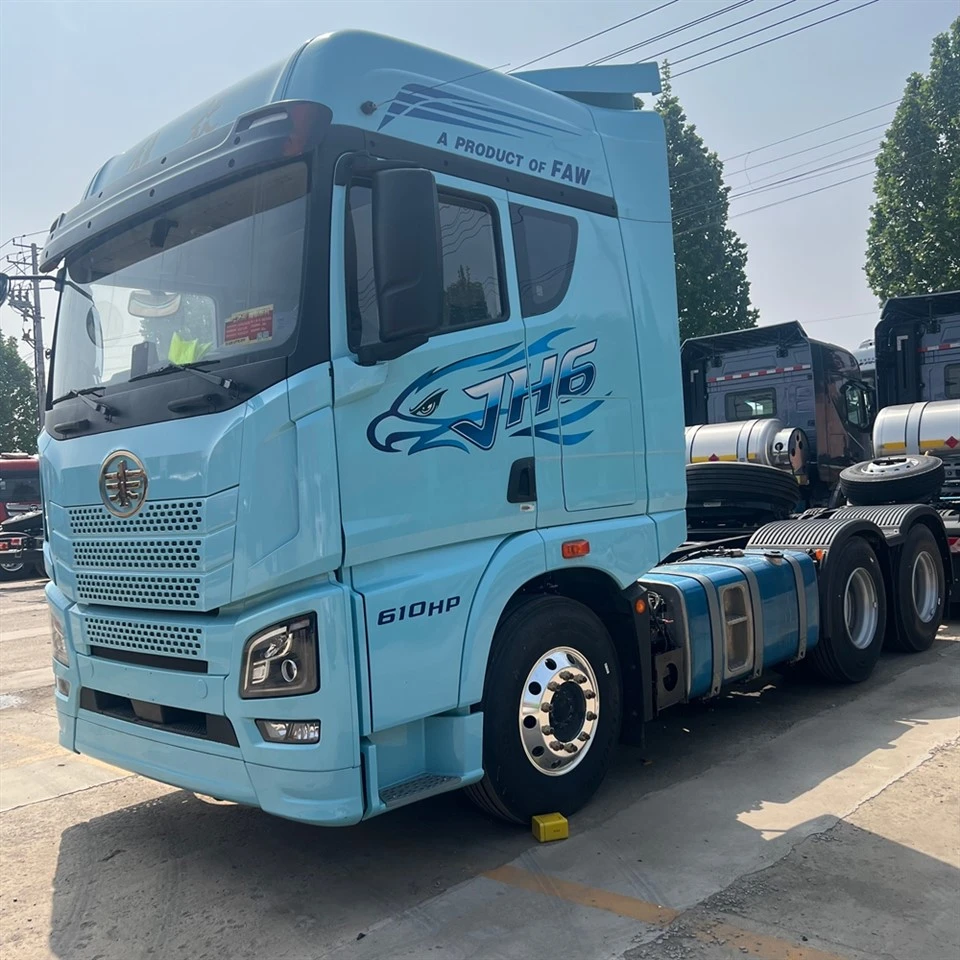

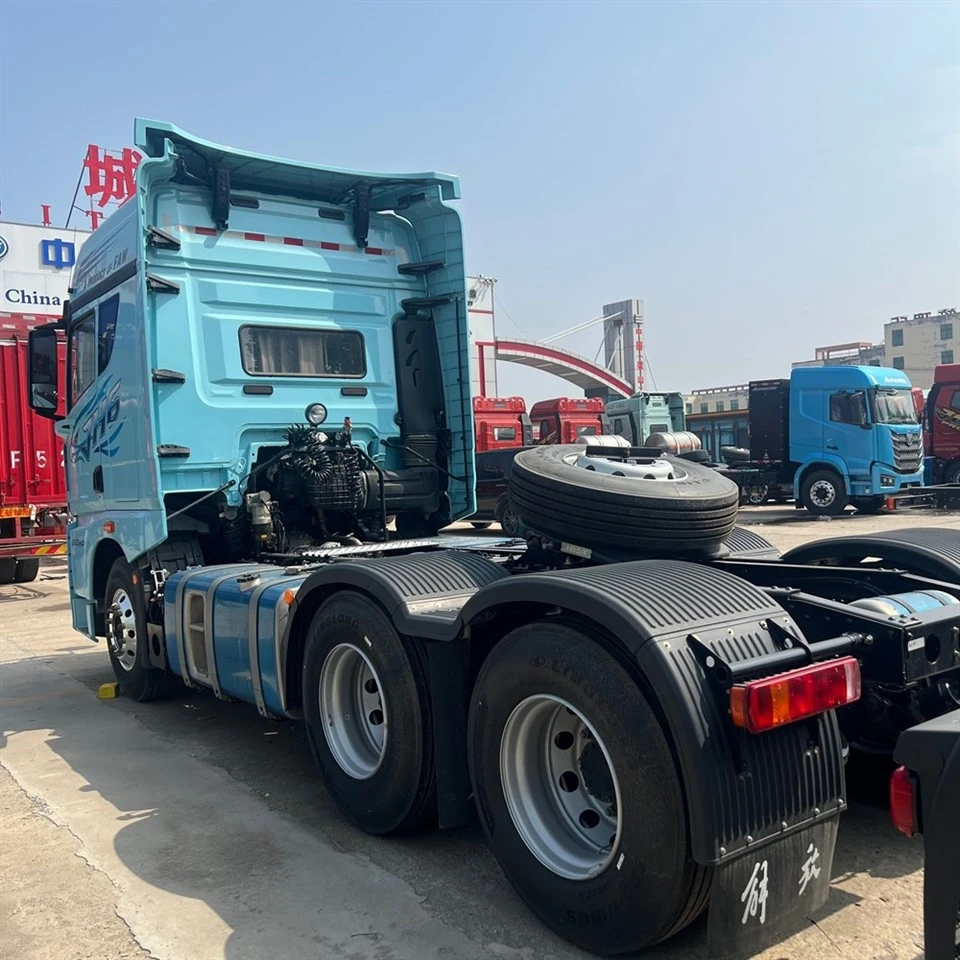

Jiefang JH6 Tractor

FAW Jiefang JH6 Tractor - Introduction, Detailed Specifications & Operation Guide

Basic Parameters

• Brand & Model: FAW Jiefang JH6 Heavy-Duty Tractor (optional configurations for different power levels, fuel types, cab types and transportation scenarios, including diesel version, natural gas (NG) version, energy-saving version and intelligent version)
• Drive Type: 6×4 (mainstream fixed configuration), dual rear drive axles, suitable for medium-heavy load (49–60 tons) long-distance traction; it has strong load-bearing capacity and passing performance, and can easily adapt to complex road conditions such as highways, hills, mountain roads and muddy roads, meeting the needs of various heavy-duty transportation scenarios
• Wheelbase: 3700mm / 4200mm / 4500mm / 4800mm (optional configurations, adjustable according to traction needs and trailer matching, adapting to different trailer lengths and logistics transportation scenarios such as container and bulk cargo transportation)
• Overall Dimensions (L×W×H): 6700–7800mm × 2550mm × 3900–4150mm (varies with cab type (high-top double sleeper cab) and additional configurations such as deflector and toolbox)

Powertrain System

• Engine: Provides dual power solutions of diesel and natural gas (NG), matching different transportation needs, with excellent power performance and economic efficiency
• Diesel Version: Optional FAW Xichai or Weichai high-efficiency diesel engines, with maximum power of 460–700 HP (338–515 kW), peak torque of 2200–3320 N·m, maximum torque speed of 1000–1300 rpm, ensuring excellent low-speed torque and climbing performance, and realizing ultra-low fuel consumption. The 700 HP version has strong power, which can easily cope with hilly, mountainous and high-altitude road conditions, greatly improving operation efficiency.
• Natural Gas (NG) Version: Equipped with Xichai CA6SM4-53E61N or Weichai WP15NG530E61 engine, with 530 HP power, and 540 HP, 590 HP power versions will be available in the future. It adopts advanced gas supply technology, with stable combustion and low gas consumption, and the 80km constant speed gas consumption is as low as 27.77kg.
• Features: Inline 6-cylinder, turbocharged & intercooled, electronic control high-pressure common rail technology (diesel version); the engine block adopts high-strength material, with high reliability, and the B10 service life is excellent; the oil change interval is long, which greatly reduces user maintenance costs; it has low idle speed, large torque, strong starting and climbing ability, and excellent heat dissipation performance, fully adapting to the heavy-load working condition of 6×4 tractors.
• Transmission: Standard 12-speed manual gearbox or optional 16-speed Shaanxi Fast F16JZ26A or ZF intelligent AMT automatic gearbox, produced by well-known manufacturers, with high-grade large-torque helical gear synchronizer, smooth shifting and strong reliability, perfectly matched with the engine to form an efficient and stable power chain

Traction System & Energy Supply

• Traction Device: Equipped with a high-strength traction saddle (optional 50# / 90#), made of high-quality alloy steel, with strong traction capacity and wear resistance; the traction pin is quenched and tempered, with high hardness and impact resistance, suitable for long-term heavy-load (49–60 tons) traction work, especially suitable for container transportation and long-distance trunk transportation
• Traction Capacity: 220–250 kN, meeting the traction needs of different types of trailers (container trailers, bulk cargo trailers, logistics trailers, etc.) under heavy-load conditions
• Design: Equipped with a quick-release device, which is convenient for connecting and disconnecting the trailer, improving operation efficiency; the traction saddle is adjustable, adapting to different trailer connection positions, ensuring stable traction and reducing chassis wear during long-distance heavy-load driving; equipped with a reliable locking device, preventing the trailer from disconnecting during operation, which meets European safety standards

Energy Supply System:

• Diesel Version: Equipped with a 800L / 900L large-capacity aluminum fuel tank as standard, corrosion-resistant and lightweight, realizing a long endurance of 3000–3500 kilometers, avoiding frequent refueling during long-distance transportation; optional dual fuel tank configuration, meeting the needs of ultra-long-distance transportation without refueling; equipped with a high-efficiency fuel filter system, effectively filtering impurities and water in the fuel, protecting the engine fuel injection system and further improving fuel economy.



Cabin & Safety Configuration

• Cabin: Adopting a high-strength integral all-steel collision-proof cab, 100% automatically welded and online laser detected, with domestic first-class low VOC coating and robot spraying technology, improving durability; 4-point airbag suspension, overall cage structure, which significantly improves impact resistance and deformation resistance; providing three types of cabs: intelligent comfort version, intelligent premium version and intelligent premium version L, all adopting flat floor design, with the internal height of the cab up to 2.05 meters, spacious interior space, suitable for long-distance drivers to rest under heavy-load long-distance transportation conditions

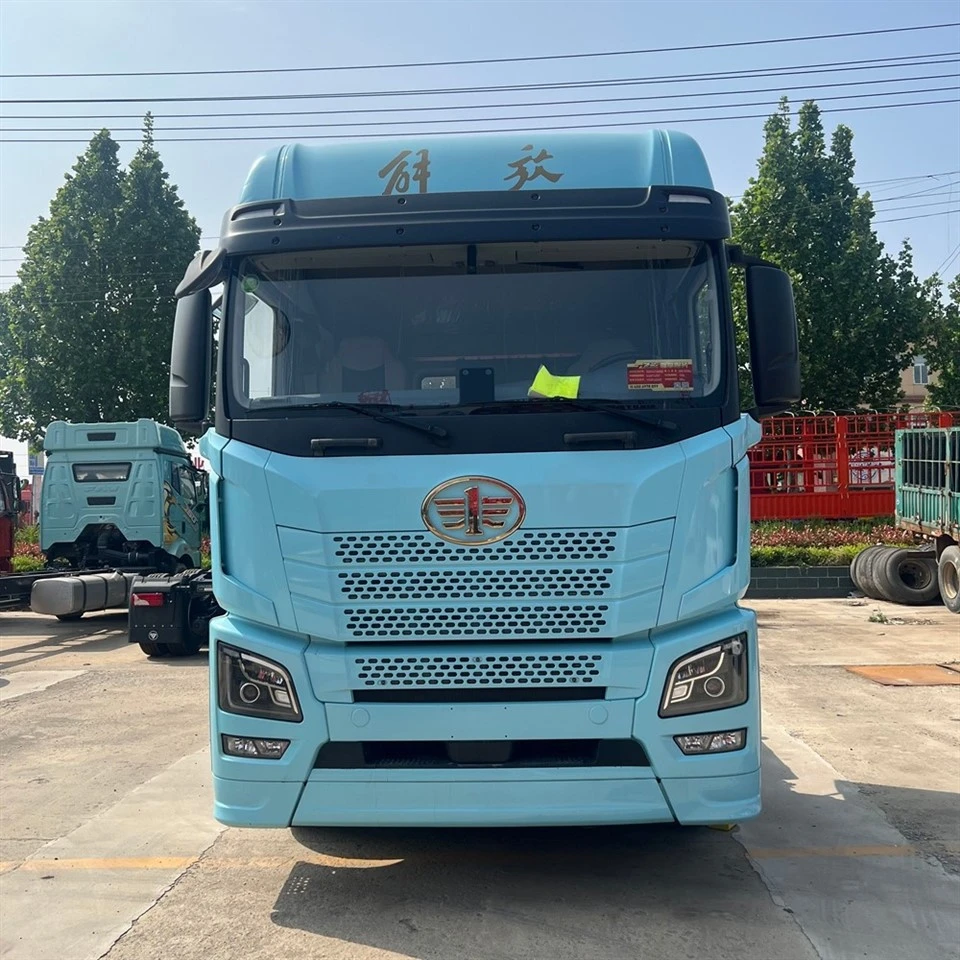

• Exterior: Stylish and tough, with a atmospheric front face design, optimized air intake grille, good heat dissipation performance; equipped with an adjustable top deflector, integral side skirt and vehicle bottom deflector, optimized for the entire vehicle's external flow field, reducing wind resistance and energy consumption; additional auxiliary toolbox, convenient for placing common tools and work shoes; extended boarding steps, making getting on and off more convenient; electronic rearview mirror, ensuring clear vision in rainy and snowy weather and reducing wind resistance.
• Interior: Luxury and comfortable, adopting advanced sound insulation, heat insulation materials and multiple shock absorption and noise reduction processes, effectively isolating noise and vibration during heavy-load driving; equipped with Grammer ventilated seats, 4-point airbag suspension, 1.2-meter wide double bed, multi-functional steering wheel, 10-inch colorful floating screen, full LCD instrument panel, EPB and trailer hand brake valve; equipped with 60W fast charging, 1000W power supply (220V inverter), living small table, parking air conditioning, independent heating, MINI kitchen and other configuration modules, creating a "mobile home" for drivers; the interior adopts a humanized color scheme, with reasonable layout and strong comfort.
• Additional Configuration: Standard electric cab lifting; optional intelligent terminal, 360 panoramic camera, intelligent fault diagnosis system (real-time monitoring of vehicle status), electric sunroof, keyless entry and one-button start function; equipped with intelligent electronic control system, realizing intelligent monitoring and control of the vehicle, and the central control panel is reasonably arranged, with various function switches within easy reach, improving operation convenience.

 Pre-Operation Inspection
Before starting the vehicle, conduct a comprehensive inspection to eliminate potential safety hazards and ensure normal operation, in line with the safety operation specifications of FAW Jiefang JH6 Tractors, especially suitable for long-distance, heavy-load and various complex transportation scenarios:

1. Exterior & Chassis: Check the tire pressure and wear condition of all tires (focus on the dual rear drive axles), ensure wheel nuts are fastened; inspect the traction saddle, traction pin and connecting bolts for looseness, deformation or wear; check the drive shaft, dual rear axles and chassis bolts for tightness and damage, especially to prevent loosening caused by bumpy roads under heavy-load conditions; confirm the ground clearance is normal, and remove obstacles on the driving path to avoid tire or chassis damage during driving; check the integrity of the differential lock (inter-wheel and inter-axle) and its pipeline, and ensure it can work normally on slippery, muddy and mountain roads; check the fuel/gas tank, air storage tank and workbench for looseness; clean the LED headlights, camera lens and electronic rearview mirror to avoid affecting vision due to dust.
2. Fluid & Gas Inspection: Diesel version: Check the levels of engine oil, coolant, fuel and brake fluid to ensure they meet the standard; drain the accumulated water in the fuel filter in time; inspect the oil pipeline and brake pipeline for tightness, and check for oil leakage or air leakage. Natural gas version: Check the gas pressure and gas pipeline tightness to ensure no gas leakage; check the anti-overcharge structure and intelligent pressurization system for normal operation. Ensure the oil temperature and water temperature are within the normal range before operation, especially in low-temperature and plateau areas; check the hydraulic oil level of the cab suspension system and the heat dissipation system for normal operation, to adapt to the heat generation of the engine under heavy-load conditions.
3. Cab & Electrical System: Test the vehicle lights (especially full LED headlights), horn, wiper, automatic headlight and automatic rain wiper to ensure all electrical equipment works normally; check the airbag seat, suspension system and steering system for normal operation; confirm the parking brake is in effective braking state (especially important for heavy-load vehicles); adjust the electronic rearview mirror and central control screen, and check the 360 panoramic camera, blind spot monitoring, driver fatigue monitoring and other functions to ensure good driving vision and safety protection (especially important for urban and long-distance driving); check the traction saddle locking device to ensure it is locked reliably; test the one-button start function and intelligent fault diagnosis system if equipped; check the storage battery status and circuit connections; check the 60W fast charging, 1000W power supply and other functions if equipped.

Vehicle Starting & Daily Driving

1. Enter the cab, turn the key to the "ON" position (or press the one-button start switch), wait for the vehicle self-inspection to complete (no fault alarm), then start the engine. For the AMT automatic gearbox version, ensure the gear is in neutral before starting; for heavy-load starting, avoid starting with full load to protect the powertrain.
2. After starting, let the engine idle for 2–3 minutes to warm up, observe the instrument data (engine speed, oil pressure, water temperature, gas pressure for NG version) to ensure all indicators are normal. In low-temperature areas, preheat the engine to 25–35℃ before starting; do not start the engine with full load when the water temperature and oil temperature do not meet the requirements, to avoid damaging the powertrain (especially important for 6×4 heavy-load tractors).
3. Release the parking brake, confirm the gear is in neutral (for automatic gearbox, switch to D gear), step on the accelerator gently to start smoothly, avoiding violent acceleration and harsh gear shifting, especially when pulling a heavy-load trailer (49–60 tons) to prevent drive shaft or tire slipping; honk the horn before starting to warn surrounding personnel, which is more important in areas with poor vision such as urban narrow roads and logistics parks.
4. Maintain a stable speed during driving: the maximum speed on highways shall not exceed 100km/h, and the speed on ordinary roads and urban roads shall be controlled within 45–60km/h; when driving on mountain roads and hills, reduce the speed appropriately to ensure safety. For long downhill sections, use low gears and engine brake to avoid frequent braking, which may cause brake failure (especially critical for heavy-load vehicles); do not change direction or shift gears when the vehicle is moving at high speed, and keep a safe distance from the vehicle in front; use the cruise control function appropriately on flat roads to reduce driving fatigue and optimize fuel consumption/gas consumption; the AMT version can use the manual mode to further optimize energy consumption and adapt to complex road conditions such as mountain roads.
5. When driving on muddy, snowy or slippery roads, turn on the inter-wheel differential lock and inter-axle differential lock to improve wheel grip and passability; avoid sharp turns at high speed to prevent rollover (the 6×4 dual rear drive configuration has a higher center of gravity under heavy load, so special attention should be paid to driving safety). For steep slopes and plateau areas, use low gears to ensure sufficient power and avoid slipping; when climbing, maintain a stable speed and do not shift gears frequently; use the hill-start assist function when starting on slopes to prevent slipping.
6. During long-distance driving, pay attention to the fuel/gas level and instrument prompts, and refuel or refuel in advance when the fuel/gas is low (a single tank of fuel can support 3000–3500 kilometers of driving, and a single gas filling can support 2100 kilometers of driving); pay attention to the prompts of the intelligent fault diagnosis system, and deal with abnormal conditions in time; check the trailer connection status regularly during driving to ensure safe traction under heavy-load conditions; avoid overloading to prevent damage to the powertrain and dual rear axles; use the parking air conditioning appropriately during rest to save energy; clean the camera lens, headlights and electronic rearview mirror regularly to avoid affecting vision due to dust.

Trailer Connection & Disconnection Operation

1. Trailer Connection: Drive the tractor to the front of the trailer, keep the tractor and trailer in a straight line, and slowly approach the trailer until the traction pin is aligned with the traction saddle; lower the tractor's suspension appropriately to make the traction pin insert into the traction saddle (pay attention to the alignment accuracy under heavy-load trailer conditions); lock the traction saddle locking device, and check to confirm it is locked reliably; connect the trailer's air circuit and circuit connectors, and test the trailer's lights and brakes to ensure they work normally; check the trailer's tire pressure and connection bolts, and confirm there is no looseness; use the 360 panoramic camera to check the surrounding environment to avoid blind spots, especially in narrow areas and logistics parks.
2. Trailer Disconnection: Drive the tractor and trailer to a flat, solid and open area (ensure the ground can bear the heavy load of the tractor and trailer), shift to neutral gear, and firmly pull the parking brake of the tractor and trailer; disconnect the trailer's air circuit and circuit connectors, and place the connectors in a clean and dry place to avoid pollution; lift the tractor's suspension to separate the traction saddle from the trailer's traction pin; slowly drive the tractor forward to separate it from the trailer, and park the tractor and trailer in a safe area respectively; place wheel blocks under the trailer's wheels to prevent slipping, which is more important on slopes (heavy-load trailers are more likely to slip).

Post-Operation Maintenance

1. Clean the dust on the cab, chassis, traction saddle and workbench to prevent dust accumulation from affecting the service life of the vehicle; clean the air filter regularly to ensure engine intake smoothness (especially important for heavy-load engines); clean the 360 panoramic camera lens, LED headlights, electronic rearview mirror and sensor to ensure clear vision and normal function; clean the residual dirt on the trailer connection part; clean the auxiliary toolbox and arrange the tools neatly.
2. Check the levels of all oils and liquids (engine oil, coolant, fuel, brake fluid for diesel version) again, replenish in time; for natural gas version, check the gas pipeline tightness and gas pressure, and deal with gas leakage immediately if found; check for oil/gas leakage and loose bolts (focus on chassis, powertrain, dual rear axles and traction system), and tighten or repair them immediately if any problems are found; when inflating the tires, do not stand in front of the tires to avoid injury from explosion; check the wear condition of the brake pads and tires (heavy-load and long-distance driving requires more frequent inspection); check the air storage tank and soft connection part for looseness; check the fuel/gas filter system and clean or replace it in time; inspect the heat dissipation system and clean the radiator to ensure normal heat dissipation (adapting to the heat generation of the engine under heavy-load conditions).
3. Park the vehicle in a dry, ventilated and flat area, turn off the engine, pull the parking brake tightly, and put the gear in neutral. If the vehicle is parked for a long time, cover the cab and traction saddle to avoid dust and corrosion; turn off the main power switch and close the doors and windows; disconnect the power supply of the trailer if it is not connected; retract the cab suspension to the appropriate position; clean the interior storage space, living small table, MINI kitchen and other components.
4. Carry out regular maintenance according to the vehicle manual: replace engine oil, filter elements (air filter, oil filter, fuel filter) and gear oil regularly according to the maintenance cycle (chassis and bridge maintenance cycle up to 15/50/60 kilometers); check the wear condition of tires, brake pads and transmission parts, and conduct comprehensive inspection and maintenance of the powertrain, traction system, brake system and heat dissipation system to ensure the long-term stable and efficient operation of the FAW Jiefang JH6 Tractor; when maintaining the vehicle, support the lifted parts firmly to avoid accidents.
