MAN 4×2 Tractor Unit

MAN 4×2 Tractor Unit- Introduction, Detailed Specifications & Operation Guide

Basic Parameters

• Brand & Model: MAN 4×2 Medium-Heavy Duty Tractor (optional configurations for different power levels, cab types and transportation scenarios, including standard version, energy-saving version and intelligent version)
• Drive Type: 4×2 single rear drive axle (mainstream fixed configuration), suitable for medium load (25–40 tons) long-distance and short-haul traction. It has flexible operation, light weight, and excellent passability, and can easily adapt to road conditions such as highways, urban roads, and rural roads, fully meeting the needs of medium-load transportation scenarios such as urban distribution and container short-haul transportation.
• Wheelbase: 3300mm / 3600mm / 3900mm (optional configurations), which can be adjusted according to the matching needs of trailers and transportation scenarios, adapting to different lengths of light container trailers and logistics trailers.
• Overall Dimensions (L×W×H): 6200–7200mm × 2500mm × 3800–4050mm (varies with cab type (high-top single/double sleeper cab) and additional configurations such as deflector and toolbox).

Powertrain System

• Engine: Equipped with MAN's self-developed high-efficiency diesel engines, with excellent power performance and economic efficiency, perfectly matching the 4×2 medium-load traction demand.
• Power Range: The MAN 4×2 Tractor Unit has a maximum power of 320–440 hp (235–324 kW), a peak torque of 1400–2100 Nm, and a maximum torque speed of 1000–1400 rpm. It has excellent low-speed torque and climbing performance, ensuring stable power output under medium-load conditions, and realizing ultra-low fuel consumption. The 440 HP version has strong power, which can easily cope with hilly road conditions and medium-load long-distance transportation, greatly improving transportation efficiency.
• Features: Inline 6-cylinder, turbocharged & intercooled, electronic control high-pressure common rail technology; the engine block is made of high-strength cast iron material, with high reliability and a B10 service life of more than 1.5 million kilometers; the oil change interval is up to 60,000 kilometers, which greatly reduces the maintenance cost of users; it has low idle speed, large torque, strong starting and climbing ability, and excellent heat dissipation performance, fully adapting to the long-term medium-load working condition of 4×2 tractors.
• Transmission: Standard 12-speed manual gearbox or optional 12-speed MAN TipMatic intelligent AMT automatic gearbox. It is produced by MAN's own transmission factory, with high-grade large-torque helical gear synchronizer, smooth shifting and strong reliability, forming an efficient and stable power chain with the engine.

Traction System & Energy Supply

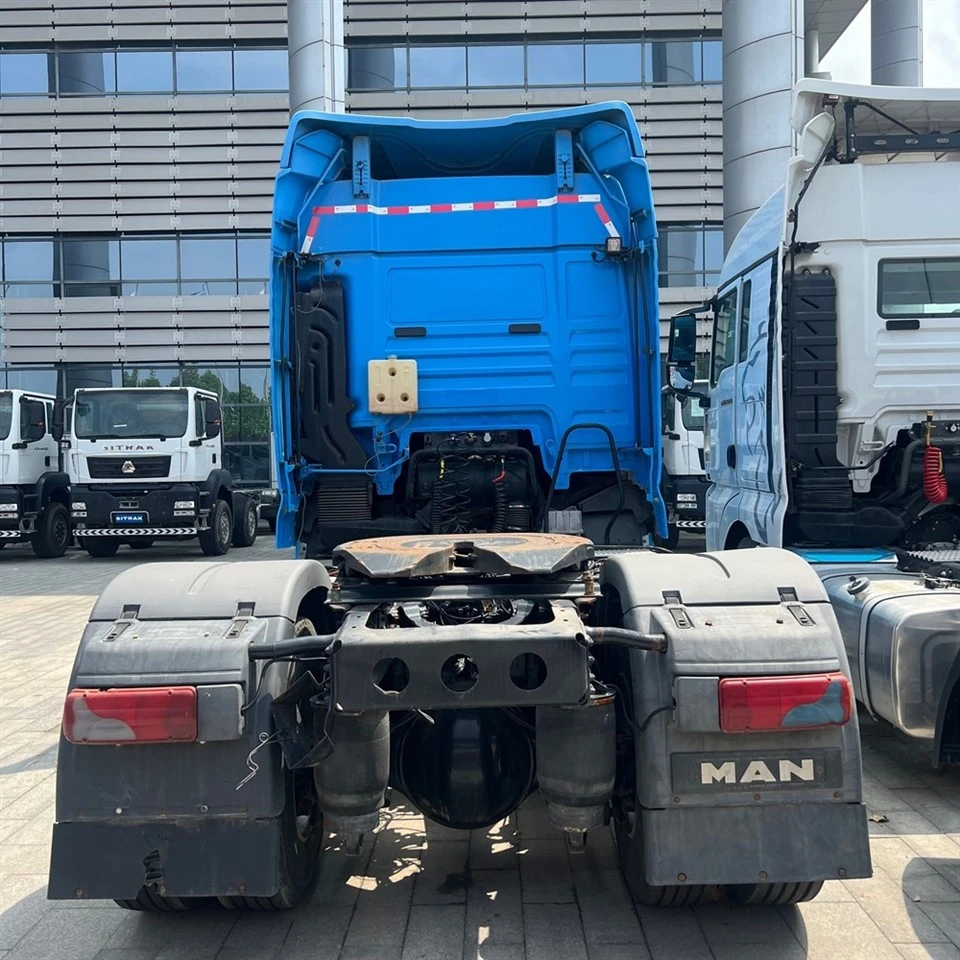

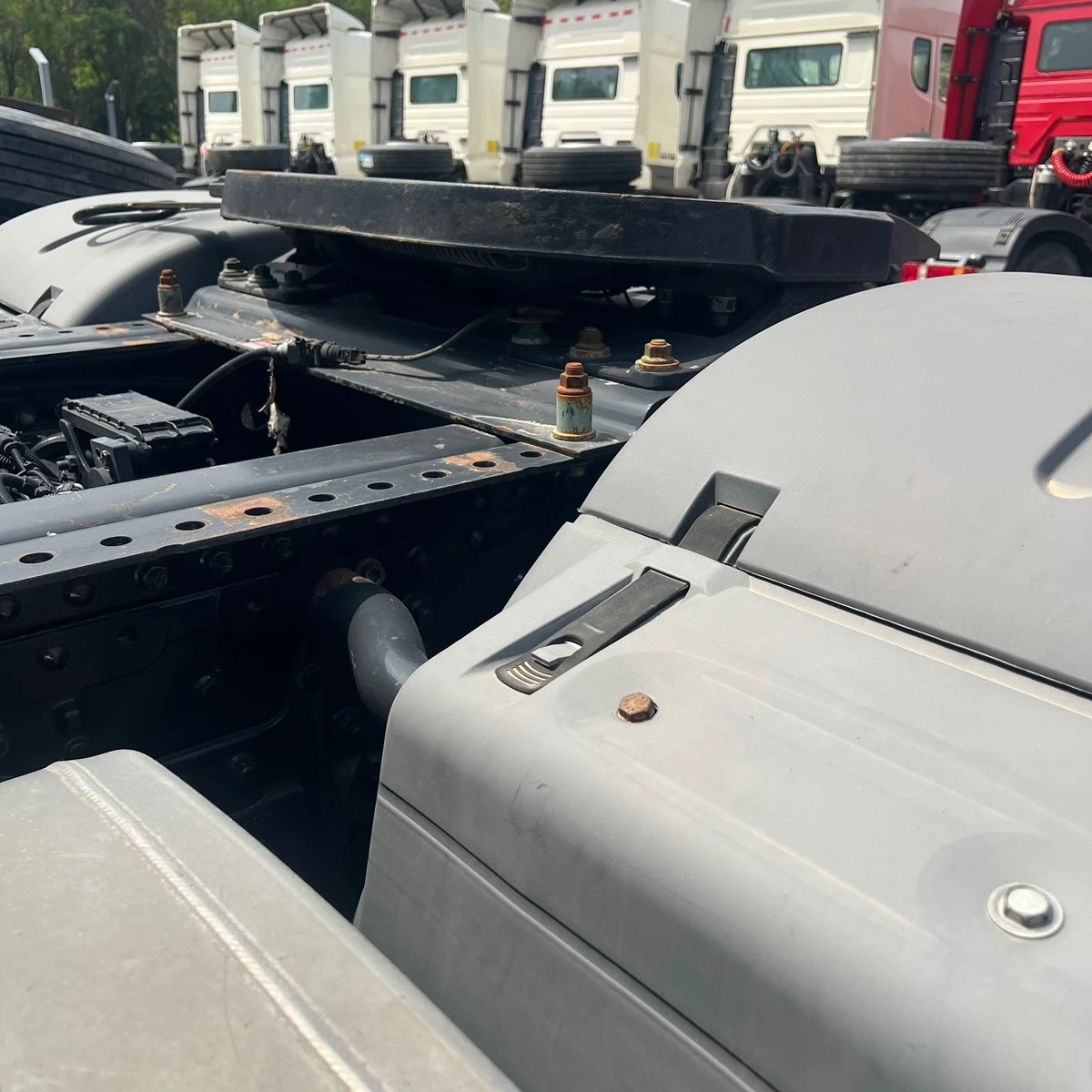

• Traction Device: Equipped with a high-strength traction saddle (optional 50#), made of high-quality alloy steel, with strong traction capacity and wear resistance; the traction pin is quenched and tempered, with high hardness and impact resistance, suitable for long-term medium-load (25–40 tons) traction work, especially suitable for container short-haul transportation and urban logistics.
• Traction Capacity: 180–220 kN, meeting the traction needs of different types of trailers (light container trailers, logistics trailers, etc.) under medium-load conditions.
• Design: Equipped with a quick-release device, which is convenient for connecting and disconnecting the trailer, improving operation efficiency; the traction saddle is adjustable, adapting to different trailer connection positions, ensuring stable traction and reducing chassis wear during long-distance medium-load driving; equipped with a reliable locking device, preventing the trailer from disconnecting during operation, which meets European safety standards.

Energy Supply System:

Cabin & Safety Configuration

• Cabin: Adopting a high-strength integral all-steel collision-proof cab, 100% automatically welded and online laser detected, with high-grade low VOC coating and robot spraying technology, improving durability and corrosion resistance; 4-point airbag suspension, overall cage structure, which significantly improves impact resistance and deformation resistance; providing two types of cabs: single sleeper and double sleeper, all adopting flat floor design, with the internal height of the cab up to 1.95 meters, spacious interior space, suitable for long-distance drivers to rest under medium-load long-distance transportation conditions.

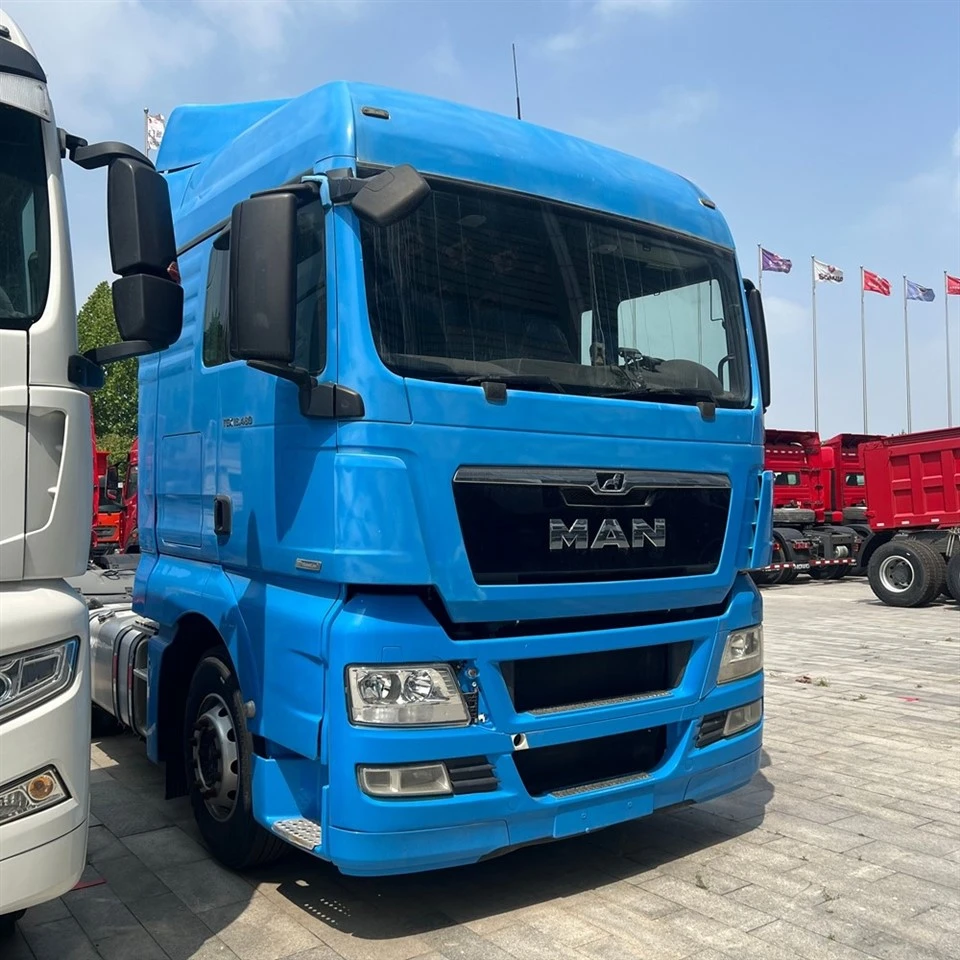

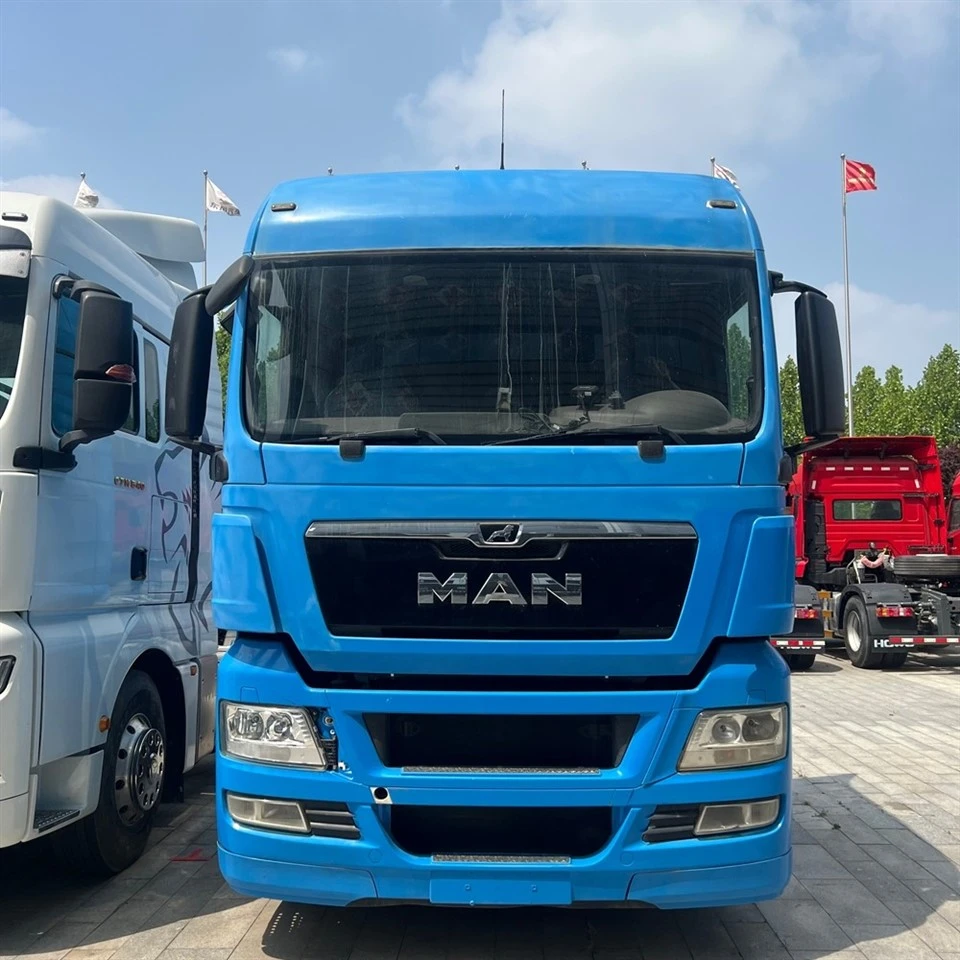

• Exterior: Stylish and concise, with a classic MAN front face design, optimized air intake grille, good heat dissipation performance; equipped with an adjustable top deflector, integral side skirt and vehicle bottom deflector, optimized for the entire vehicle's external flow field, reducing wind resistance and energy consumption; additional auxiliary toolbox, convenient for placing common tools and work shoes; extended boarding steps, making getting on and off more convenient; electronic rearview mirror, ensuring clear vision in rainy and snowy weather and reducing wind resistance.
• Interior: Comfortable and practical, adopting advanced sound insulation, heat insulation materials and multiple shock absorption and noise reduction processes, effectively isolating noise and vibration during medium-load driving; equipped with ergonomic leather seats, 4-point airbag suspension, 1.0-meter wide single/double bed, multi-functional steering wheel, 8-inch colorful floating screen, full LCD instrument panel, EPB and trailer hand brake valve; equipped with 60W fast charging, 1000W power supply (220V inverter), living small table, parking air conditioning, independent heating and other configuration modules, creating a comfortable driving and resting environment for drivers; the interior adopts a humanized color scheme, with reasonable layout and strong comfort.
• Additional Configuration: Standard electric cab lifting; optional intelligent terminal, 360 panoramic camera, intelligent fault diagnosis system (real-time monitoring of vehicle status), electric sunroof, keyless entry and one-button start function; equipped with intelligent electronic control system, realizing intelligent monitoring and control of the vehicle, and the central control panel is reasonably arranged, with various function switches within easy reach, improving operation convenience.

Pre-Operation Inspection
Before starting the vehicle, conduct a comprehensive inspection to eliminate potential safety hazards and ensure normal operation, in line with the safety operation specifications of MAN 4×2 Tractors, especially suitable for long-distance, medium-load and urban transportation scenarios:

1. Exterior & Chassis: Check the tire pressure and wear condition of all tires (focus on the single rear drive axle), ensure wheel nuts are fastened; inspect the traction saddle, traction pin and connecting bolts for looseness, deformation or wear; check the drive shaft, rear axle and chassis bolts for tightness and damage, especially to prevent loosening caused by bumpy roads under medium-load conditions; confirm the ground clearance is normal, and remove obstacles on the driving path to avoid tire or chassis damage during driving; check the integrity of the inter-wheel differential lock and its pipeline, and ensure it can work normally on slippery and muddy roads; check the fuel tank, air storage tank and workbench for looseness; clean the LED headlights, camera lens and electronic rearview mirror to avoid affecting vision due to dust.
2. Fluid Inspection: Check the levels of engine oil, coolant, fuel and brake fluid to ensure they meet the standard; drain the accumulated water in the fuel filter in time; inspect the oil pipeline and brake pipeline for tightness, and check for oil leakage or air leakage. Ensure the oil temperature and water temperature are within the normal range before operation, especially in low-temperature and plateau areas; check the hydraulic oil level of the cab suspension system and the heat dissipation system for normal operation, to adapt to the heat generation of the engine under medium-load conditions.
3. Cab & Electrical System: Test the vehicle lights (especially full LED headlights), horn, wiper, automatic headlight and automatic rain wiper to ensure all electrical equipment works normally; check the airbag seat, suspension system and steering system for normal operation; confirm the parking brake is in effective braking state (especially important for medium-load vehicles); adjust the electronic rearview mirror and central control screen, and check the 360 panoramic camera, blind spot monitoring, driver fatigue monitoring and other functions to ensure good driving vision and safety protection (especially important for urban and long-distance driving); check the traction saddle locking device to ensure it is locked reliably; test the one-button start function and intelligent fault diagnosis system if equipped; check the storage battery status and circuit connections; check the 60W fast charging, 1000W power supply and other functions if equipped.

Vehicle Starting & Daily Driving

1. Enter the cab, turn the key to the "ON" position (or press the one-button start switch), wait for the vehicle self-inspection to complete (no fault alarm), then start the engine. For the AMT automatic gearbox version, ensure the gear is in neutral before starting; for medium-load starting, avoid starting with full load to protect the powertrain.
2. After starting, let the engine idle for 2–3 minutes to warm up, observe the instrument data (engine speed, oil pressure, water temperature) to ensure all indicators are normal. In low-temperature areas, preheat the engine to 25–35℃ before starting; do not start the engine with full load when the water temperature and oil temperature do not meet the requirements, to avoid damaging the powertrain (especially important for 4×2 medium-load tractors).
3. Release the parking brake, confirm the gear is in neutral (for automatic gearbox, switch to D gear), step on the accelerator gently to start smoothly, avoiding violent acceleration and harsh gear shifting, especially when pulling a medium-load trailer (25–40 tons) to prevent drive shaft or tire slipping; honk the horn before starting to warn surrounding personnel, which is more important in areas with poor vision such as urban narrow roads and logistics parks.
4. Maintain a stable speed during driving: the maximum speed on highways shall not exceed 100km/h, and the speed on ordinary roads and urban roads shall be controlled within 40–60km/h; when driving on mountain roads and hills, reduce the speed appropriately to ensure safety. For long downhill sections, use low gears and engine brake to avoid frequent braking, which may cause brake failure (especially critical for medium-load vehicles); do not change direction or shift gears when the vehicle is moving at high speed, and keep a safe distance from the vehicle in front; use the cruise control function appropriately on flat roads to reduce driving fatigue and optimize fuel consumption; the AMT version can use the manual mode to further optimize fuel consumption and adapt to complex road conditions such as mountain roads.
5. When driving on muddy, snowy or slippery roads, turn on the inter-wheel differential lock to improve wheel grip and passability; avoid sharp turns at high speed to prevent rollover (the 4×2 single rear drive configuration has good flexibility, but attention should still be paid to driving safety under medium load). For steep slopes and plateau areas, use low gears to ensure sufficient power and avoid slipping; when climbing, maintain a stable speed and do not shift gears frequently; use the hill-start assist function when starting on slopes to prevent slipping.
6. During long-distance driving, pay attention to the fuel level and instrument prompts, and refuel in advance when the fuel is low (a single tank of fuel can support 2500–3000 kilometers of driving); pay attention to the prompts of the intelligent fault diagnosis system, and deal with abnormal conditions in time; check the trailer connection status regularly during driving to ensure safe traction under medium-load conditions; avoid overloading to prevent damage to the powertrain and rear axle; use the parking air conditioning appropriately during rest to save fuel; clean the camera lens, headlights and electronic rearview mirror regularly to avoid affecting vision due to dust.

Trailer Connection & Disconnection Operation

1. Trailer Connection: Drive the tractor to the front of the trailer, keep the tractor and trailer in a straight line, and slowly approach the trailer until the traction pin is aligned with the traction saddle; lower the tractor's suspension appropriately to make the traction pin insert into the traction saddle (pay attention to the alignment accuracy under medium-load trailer conditions); lock the traction saddle locking device, and check to confirm it is locked reliably; connect the trailer's air circuit and circuit connectors, and test the trailer's lights and brakes to ensure they work normally; check the trailer's tire pressure and connection bolts, and confirm there is no looseness; use the 360 panoramic camera to check the surrounding environment to avoid blind spots, especially in narrow areas and logistics parks.
2. Trailer Disconnection: Drive the tractor and trailer to a flat, solid and open area (ensure the ground can bear the medium load of the tractor and trailer), shift to neutral gear, and firmly pull the parking brake of the tractor and trailer; disconnect the trailer's air circuit and circuit connectors, and place the connectors in a clean and dry place to avoid pollution; lift the tractor's suspension to separate the traction saddle from the trailer's traction pin; slowly drive the tractor forward to separate it from the trailer, and park the tractor and trailer in a safe area respectively; place wheel blocks under the trailer's wheels to prevent slipping, which is more important on slopes (medium-load trailers are also prone to slipping).

 Post-Operation Maintenance

1. Clean the dust on the cab, chassis, traction saddle and workbench to prevent dust accumulation from affecting the service life of the vehicle; clean the air filter regularly to ensure engine intake smoothness (especially important for medium-load engines); clean the 360 panoramic camera lens, LED headlights, electronic rearview mirror and sensor to ensure clear vision and normal function; clean the residual dirt on the trailer connection part; clean the auxiliary toolbox and arrange the tools neatly.
2. Check the levels of all oils and liquids (engine oil, coolant, fuel, brake fluid) again, replenish in time; check for oil leakage and loose bolts (focus on chassis, powertrain, rear axle and traction system), and tighten or repair them immediately if any problems are found; when inflating the tires, do not stand in front of the tires to avoid injury from explosion; check the wear condition of the brake pads and tires (medium-load and long-distance driving requires regular inspection); check the air storage tank and soft connection part for looseness; check the fuel filter system and clean or replace it in time; inspect the heat dissipation system and clean the radiator to ensure normal heat dissipation (adapting to the heat generation of the engine under medium-load conditions).
3. Park the vehicle in a dry, ventilated and flat area, turn off the engine, pull the parking brake tightly, and put the gear in neutral. If the vehicle is parked for a long time, cover the cab and traction saddle to avoid dust and corrosion; turn off the main power switch and close the doors and windows; disconnect the power supply of the trailer if it is not connected; retract the cab suspension to the appropriate position; clean the interior storage space, living small table and other components.
4. Carry out regular maintenance according to the vehicle manual: replace engine oil, filter elements (air filter, oil filter, fuel filter) and gear oil regularly according to the maintenance cycle (engine 60,000 kilometers, transmission and rear axle 120,000 kilometers); check the wear condition of tires, brake pads and transmission parts, and conduct comprehensive inspection and maintenance of the powertrain, traction system, brake system and heat dissipation system to ensure the long-term stable and efficient operation of the MAN 4×2 Tractor; when maintaining the vehicle, support the lifted parts firmly to avoid accidents.
